- Hot-Pluggable SFP Footprint
- Supports upto 3.072Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 300M on MMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

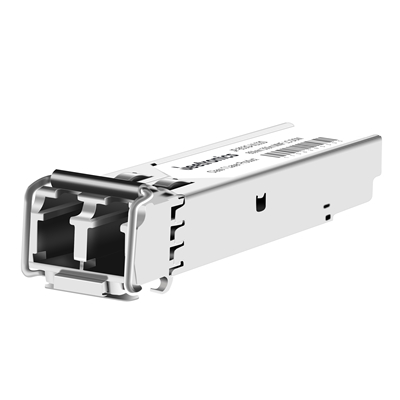

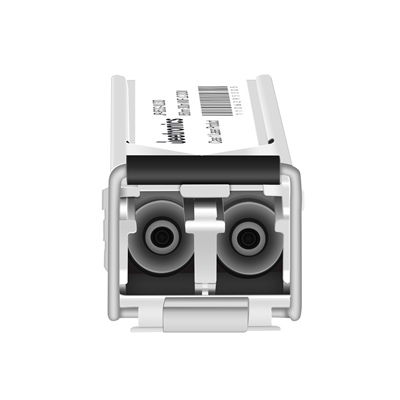

| P/N | JP-853G-VL03D |
| Form Factor | SFP |
| Standard & protocal | 3GBASE SR |
| Data Rate | 3.072Gbps |
| WaveLength | 850nm |
| Media | MMF |
| Reach | 300M |
| Interface | Duplex LC |
| Tx Source | VCSEL |
| Rx Source | PIN |
| Tx Power | -10～-3dBm |
| Rx Power | ≦-18dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JP-853G-VL03D | 3.072Gbps | 850nm More | 300M | Duplex LC | MMF | -10～-3dBm | ≦-18dBm | Tc/Ti |
| JP-133G-FL5D | 3.072Gbps | 1310nm More | 5KM | Duplex LC | SMF | -10～-3dBm | ≦-18dBm | Tc/Ti |
| JP-133G-DL20D | 3.072Gbps | 1310nm More | 20KM | Duplex LC | SMF | -5～0dBm | ≦-18dBm | Tc/Ti |
| JP-133G-DL40D | 3.072Gbps | 1310nm More | 40KM | Duplex LC | SMF | 0～+5dBm | ≦-18dBm | Tc/Ti |
| JP-153G-DL40D | 3.072Gbps | 1550nm More | 40KM | Duplex LC | SMF | -5～0dBm | ≦-18dBm | Tc/Ti |
| JP-153G-DL80D | 3.072Gbps | 1550nm More | 80KM | Duplex LC | SMF | 0～+5dBm | ≦-28dBm | Tc/Ti |
