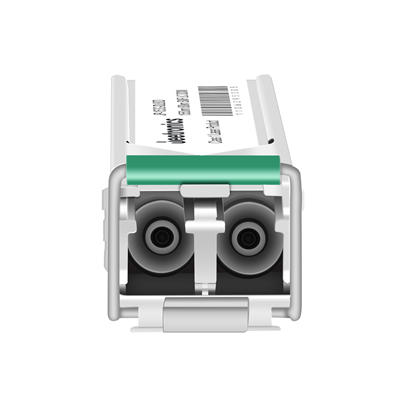

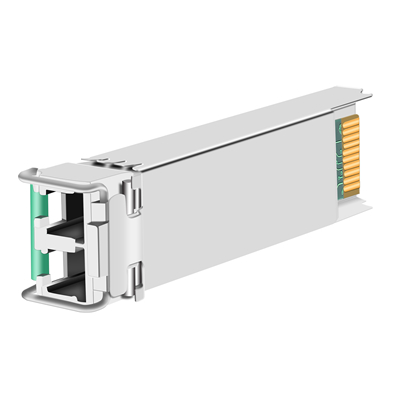

JP-153G-DL80D

SFP 3.072Gbps 1550nm SMF 80KM Duplex LC Optical Transceiver

JP-153G-DL80D is a MSA compliant 3.072Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 3.072Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 80KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-153G-DL80D
Form Factor SFP
Standard & protocal 3GBASE ZR
Data Rate 3.072Gbps
WaveLength 1550nm
Media SMF
Reach 80KM
Interface Duplex LC
Tx Source DFB
Rx Source APD
Tx Power 0~+5dBm
Rx Power ≦-28dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-153G-DL80D 3.072Gbps 1550nm  More 80KM Duplex LC SMF 0~+5dBm ≦-28dBm Tc/Ti
JP-853G-VL03D 3.072Gbps 850nm  More 300M Duplex LC MMF -10~-3dBm ≦-18dBm Tc/Ti
JP-133G-FL5D 3.072Gbps 1310nm  More 5KM Duplex LC SMF -10~-3dBm ≦-18dBm Tc/Ti
JP-133G-DL20D 3.072Gbps 1310nm  More 20KM Duplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
JP-133G-DL40D 3.072Gbps 1310nm  More 40KM Duplex LC SMF 0~+5dBm ≦-18dBm Tc/Ti
JP-153G-DL40D 3.072Gbps 1550nm  More 40KM Duplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
