- Hot-Pluggable QSFP-DD Footprint
- Supports upto 400Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 2KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with QSFP-DD MSA Specification
- Low power consumption

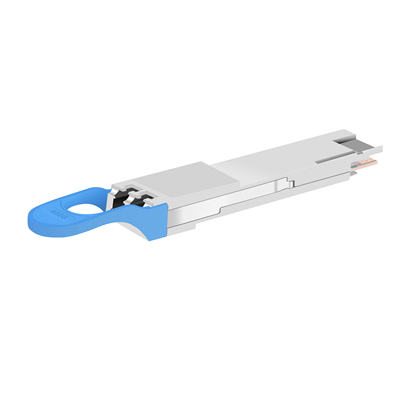

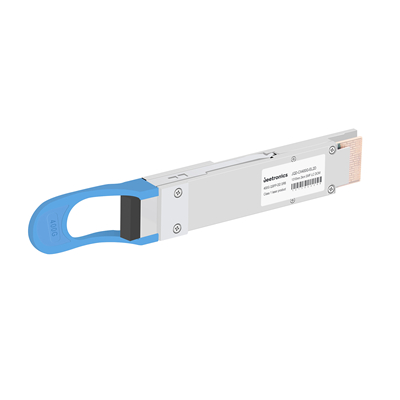

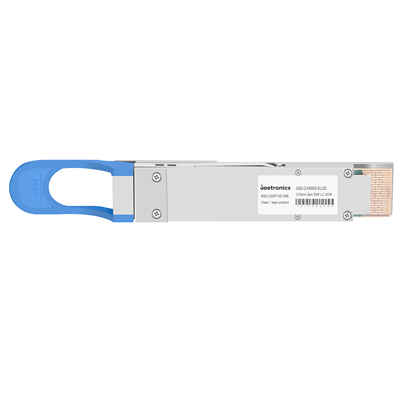

| P/N | JQD-CX400G-EL2D |
| Form Factor | QSFP-DD |
| Standard & protocal | 400GBASE FR4 |
| Data Rate | 400Gbps |
| WaveLength | 1310nm |
| Media | SMF |
| Reach | 2KM |

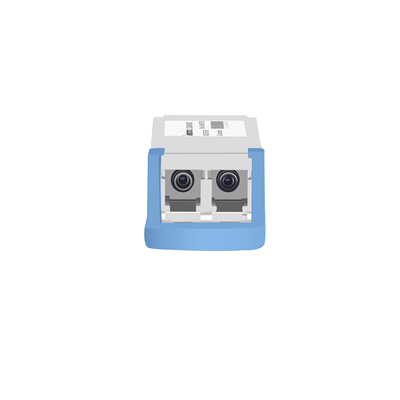

| Interface | Duplex LC |
| Tx Source | CWDM EML |
| Rx Source | PIN |
| Tx Power | -3.3~+3.5dBm |
| Rx Power | ≦-4.6dBm |
| Temp. | Tc |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JQD-CX400G-EL2D | 400Gbps | 1310nm More | 2KM | Duplex LC | SMF | -3.3~+3.5dBm | ≦-4.6dBm | Tc |
| JQD-85400G-VM01D | 400Gbps | 850nm More | 100M | MPO16 | MMF | -6.0~+4.0dBm | ≦-7.9dBm | Tc |
| JQD-13400G-EM05D | 400Gbps | 1310nm More | 500M | MPO12 | SMF | -2.9~+4.0dBm | ≦-4.4dBm | Tc |
