- Hot-Pluggable SFP Footprint
- Supports upto 3.072Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 5KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

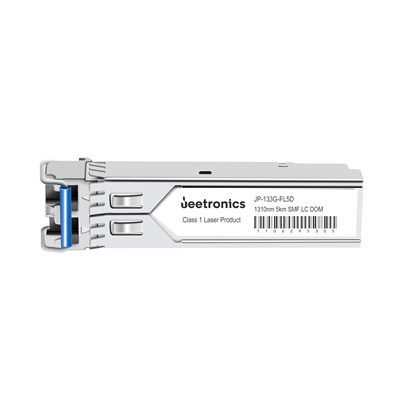

P/N | JP-133G-FL5D |
Form Factor | SFP |
Standard & protocal | 3GBASE LR |
Data Rate | 3.072Gbps |
WaveLength | 1310nm |
Media | SMF |
Reach | 5KM |

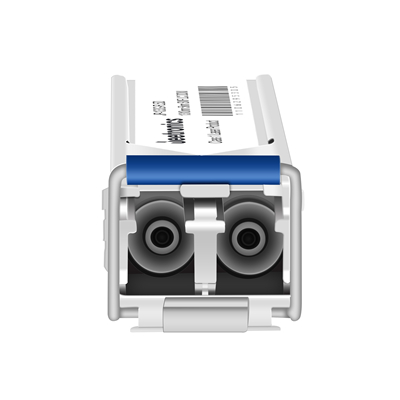

Interface | Duplex LC |
Tx Source | FP |
Rx Source | PIN |
Tx Power | -10~-3dBm |
Rx Power | ≦-18dBm |
Temp. | Tc/Ti |
P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
---|---|---|---|---|---|---|---|---|
JP-133G-FL5D | 3.072Gbps | 1310nm More | 5KM | Duplex LC | SMF | -10~-3dBm | ≦-18dBm | Tc/Ti |
JP-853G-VL03D | 3.072Gbps | 850nm More | 300M | Duplex LC | MMF | -10~-3dBm | ≦-18dBm | Tc/Ti |
JP-133G-DL20D | 3.072Gbps | 1310nm More | 20KM | Duplex LC | SMF | -5~0dBm | ≦-18dBm | Tc/Ti |
JP-133G-DL40D | 3.072Gbps | 1310nm More | 40KM | Duplex LC | SMF | 0~+5dBm | ≦-18dBm | Tc/Ti |
JP-153G-DL40D | 3.072Gbps | 1550nm More | 40KM | Duplex LC | SMF | -5~0dBm | ≦-18dBm | Tc/Ti |
JP-153G-DL80D | 3.072Gbps | 1550nm More | 80KM | Duplex LC | SMF | 0~+5dBm | ≦-28dBm | Tc/Ti |
