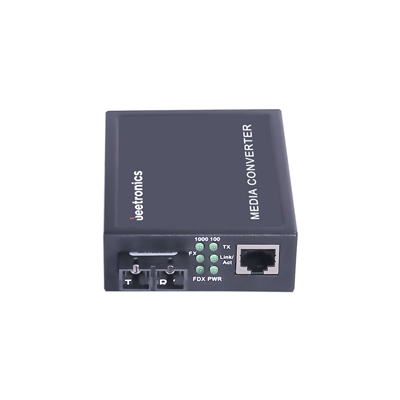

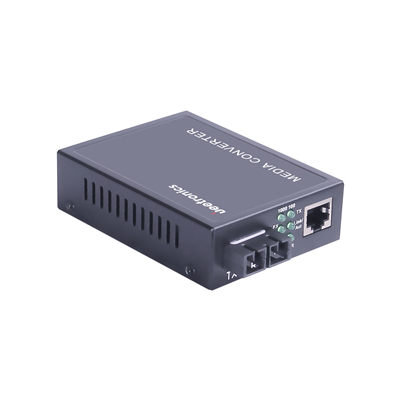

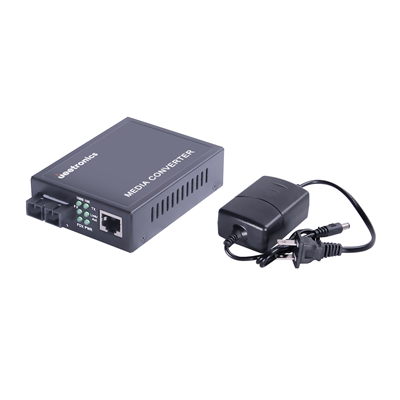

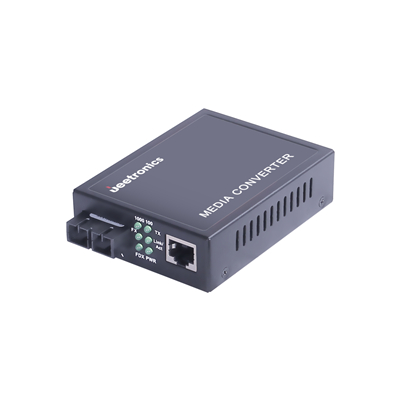

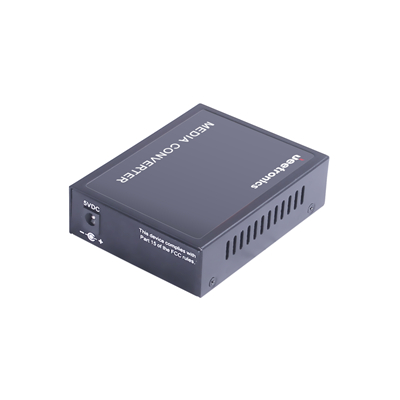

1x 10/100Base-TX to 1x 100Base-FX (1550nm SMF 100km Dual SC) Unmanaged Fast Ethernet Fiber Media Converter

JFA101-15S100 provides a cost effective conversion from 1x 10/100Base-TX to 1x 100Base-FX interfaces to overcome the 100 meter distance limitations of copper cables in traditional networks . It allows the installation of fiber cabling anywhere with a Ethernet network topology by directly connecting to existing devices. Its compact design makes deployment quick and easy in a narrow desktop location to save space.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Complies with IEEE 802.3 ,IEEE 802.3u ,IEEE 802.3x
  • 1x 1x 10/100Base-TX
  • 1x 1x 100Base-FX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • 5V DC universal power supply
  • Extends fiber distance up to 100km
  • Operating Case Temperature : 0~50°C

Data Rate 10/100Mbps
Device Type Unmanaged
Form Factor Stand-alone

Interface Characteristics

Copper Interface 1x 10/100Base-TX
Fiber Interface 1x 100Base-FX
Wavelength 1550nm
Media SMF
Distance 100km
Connector Dual SC
LED indicators PWR (power supply);
FL/A (optical link/action)
FDX (FX full duplex),
TL/A (twisted pairs link/action)
100 (100M transmission rate of twisted pairs),
FX (100M transmission rate of optical fiber)

Technology

Standards and Protocols IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Full duplex and flow control
Processing Type Store and Forward
Flow Control Half-duplex back-pressure and IEEE 802.3x full-duplex flow control

Power

Power Input DC 5V
Power Consumption <3W

Switch Properties

Delay <20μs
Buffer space 128K
MAC address table 8K

Physical

Casing Mat. Cold Rolled Steel
Dimensions External: 94mm x 70mm x 26mm
Internal: 140mm x 110mm x 30mm
Installation Standalone or Rack mount
Environmental Operating temperature : -10~55°C
Storage Temperature: -40~85°C
Relative Humidity: 5% to 95% non-condensing

Regulatory

ISO Manufactured in ISO-9001 facility
Safety & Emission CE , FCC, RoHS

Realiability

MTBF >50,000Hrs
P/N Category Device Type Copper Interface Fiber Interface Wavelength Media Distance Connector Power Input
JFA101-15S100 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX 1550nm SMF 100km Dual SC DC 5V
JFA101-P Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 5V
JFA101-13S02 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX 1310nm MMF 2km Dual SC DC 5V
JFA101-13S20 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX 1310nm SMF 20km Dual SC DC 5V
JFA101-13S40 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX 1310nm SMF 40km Dual SC DC 5V
JFA101-15S60 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX 1550nm SMF 60km Dual SC DC 5V
JFA101-15S80 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX 1550nm SMF 80km Dual SC DC 5V
JFA101-B35S20 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX TX1310/RX1550nm SMF 20km Single SC DC 5V
JFA101-B53S20 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX TX1550/RX1310nm SMF 20km Single SC DC 5V
JFA101-B35S40 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX TX1310/RX1550nm SMF 40km Single SC DC 5V
JFA101-B53S40 Fiber Media Converter Unmanaged  More 1x 10/100Base-TX 1x 100Base-FX TX1550/RX1310nm SMF 40km Single SC DC 5V
