- Hot-Pluggable SFP Footprint
- Supports upto 6.144Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 300M on MMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

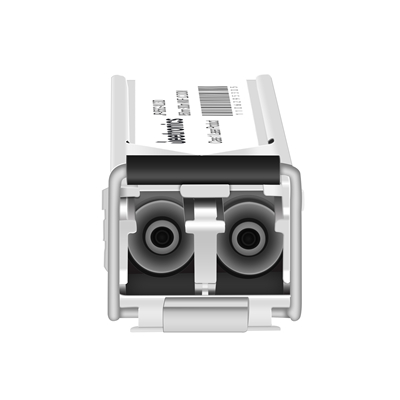

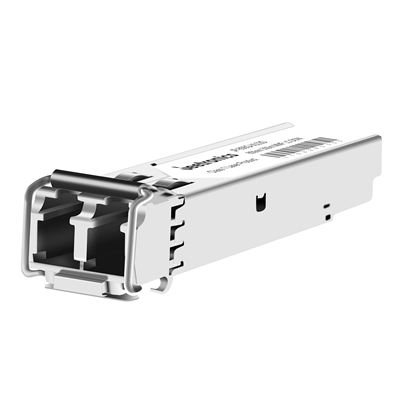

P/N | JP-856G-VL03D |
Form Factor | SFP |
Standard & protocal | 6GBASE SR |
Data Rate | 6.144Gbps |
WaveLength | 850nm |
Media | MMF |
Reach | 300M |
Interface | Duplex LC |
Tx Source | VCSEL |
Rx Source | PIN |
Tx Power | -8~-1dBm |
Rx Power | ≦-11dBm |
Temp. | Tc/Ti |
P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
---|---|---|---|---|---|---|---|---|
JP-856G-VL03D | 6.144Gbps | 850nm More | 300M | Duplex LC | MMF | -8~-1dBm | ≦-11dBm | Tc/Ti |
JP-136G-FL2D | 6.144Gbps | 1310nm More | 2KM | Duplex LC | SMF | -8~0dBm | ≦-14dBm | Tc/Ti |
JP-136G-DL10D | 6.144Gbps | 1310nm More | 10KM | Duplex LC | SMF | -8~-1dBm | ≦-14dBm | Tc/Ti |
JP-136G-DL20D | 6.144Gbps | 1310nm More | 20KM | Duplex LC | SMF | -1~+3dBm | ≦-15dBm | Tc/Ti |
JP-136G-DL40D | 6.144Gbps | 1310nm More | 40KM | Duplex LC | SMF | -1~+4dBm | ≦-16dBm | Tc/Ti |
JP-136G-DL70D | 6.144Gbps | 1310nm More | 70KM | Duplex LC | SMF | 0~4dBm | ≦-24dBm | Tc/Ti |
