- Hot-Pluggable SFP Footprint
- Supports upto 6.144Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 10KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

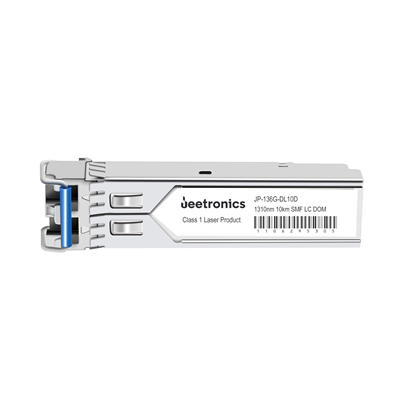

| P/N | JP-136G-DL10D |
| Form Factor | SFP |
| Standard & protocal | 6GBASE LR |
| Data Rate | 6.144Gbps |
| WaveLength | 1310nm |
| Media | SMF |
| Reach | 10KM |

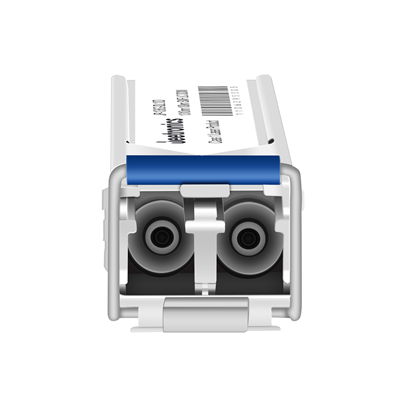

| Interface | Duplex LC |
| Tx Source | DFB |
| Rx Source | PIN |
| Tx Power | -8～-1dBm |
| Rx Power | ≦-14dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JP-136G-DL10D | 6.144Gbps | 1310nm More | 10KM | Duplex LC | SMF | -8～-1dBm | ≦-14dBm | Tc/Ti |
| JP-856G-VL03D | 6.144Gbps | 850nm More | 300M | Duplex LC | MMF | -8～-1dBm | ≦-11dBm | Tc/Ti |
| JP-136G-FL2D | 6.144Gbps | 1310nm More | 2KM | Duplex LC | SMF | -8～0dBm | ≦-14dBm | Tc/Ti |
| JP-136G-DL20D | 6.144Gbps | 1310nm More | 20KM | Duplex LC | SMF | -1～+3dBm | ≦-15dBm | Tc/Ti |
| JP-136G-DL40D | 6.144Gbps | 1310nm More | 40KM | Duplex LC | SMF | -1～+4dBm | ≦-16dBm | Tc/Ti |
| JP-136G-DL70D | 6.144Gbps | 1310nm More | 70KM | Duplex LC | SMF | 0～4dBm | ≦-24dBm | Tc/Ti |
