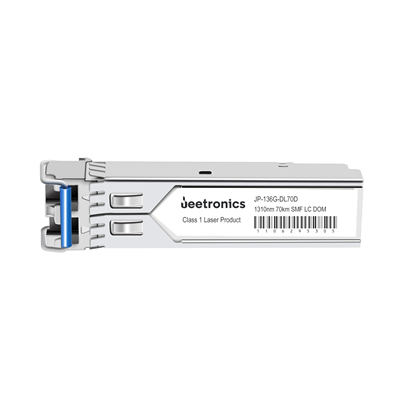

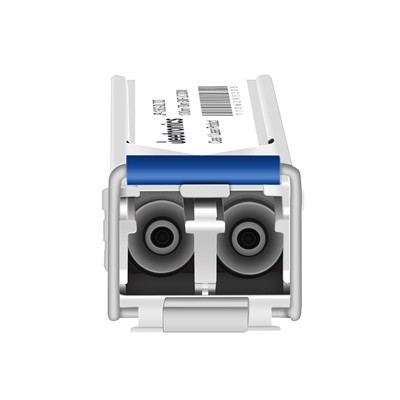

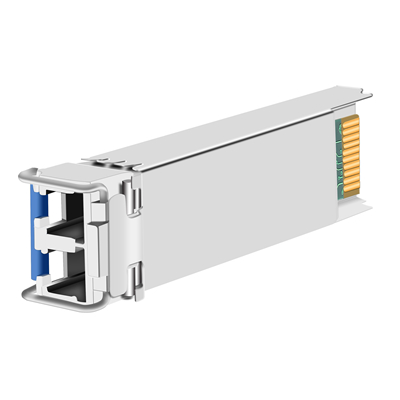

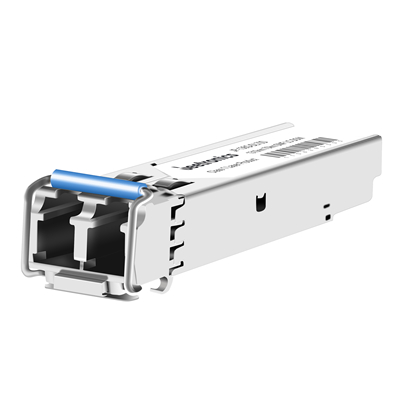

SFP 6.144Gbps 1310nm SMF 70KM Duplex LC Optical Transceiver

JP-136G-DL70D is a MSA compliant 6.144Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 6.144Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 70KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-136G-DL70D
Form Factor SFP
Standard & protocal 6GBASE ZR
Data Rate 6.144Gbps
WaveLength 1310nm
Media SMF
Reach 70KM
Interface Duplex LC
Tx Source DFB
Rx Source APD
Tx Power 0~4dBm
Rx Power ≦-24dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-136G-DL70D 6.144Gbps 1310nm  More 70KM Duplex LC SMF 0~4dBm ≦-24dBm Tc/Ti
JP-856G-VL03D 6.144Gbps 850nm  More 300M Duplex LC MMF -8~-1dBm ≦-11dBm Tc/Ti
JP-136G-FL2D 6.144Gbps 1310nm  More 2KM Duplex LC SMF -8~0dBm ≦-14dBm Tc/Ti
JP-136G-DL10D 6.144Gbps 1310nm  More 10KM Duplex LC SMF -8~-1dBm ≦-14dBm Tc/Ti
JP-136G-DL20D 6.144Gbps 1310nm  More 20KM Duplex LC SMF -1~+3dBm ≦-15dBm Tc/Ti
JP-136G-DL40D 6.144Gbps 1310nm  More 40KM Duplex LC SMF -1~+4dBm ≦-16dBm Tc/Ti
