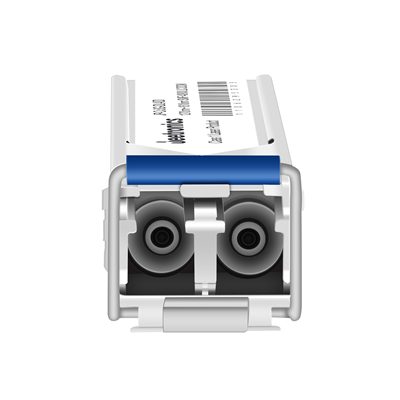

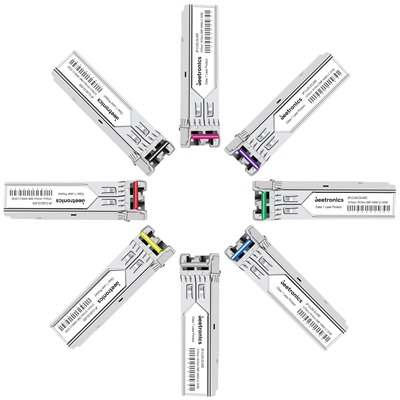

SFP 3.072Gbps CWDM 1270nm~1610nm SMF 40KM Duplex LC Optical Transceiver

JP-Cx3G-DL40D is a MSA compliant 3.072Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 3.072Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 40KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-Cx3G-DL40D
Form Factor SFP
Standard & protocal 3GBASE CWDM
Data Rate 3.072Gbps
WaveLength CWDM 1270nm~1610nm
Media SMF
Reach 40KM
Interface Duplex LC
Tx Source DFB
Rx Source PIN
Tx Power -2~+3dBm
Rx Power ≦-16dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-Cx3G-DL40D 3.072Gbps CWDM 1270nm~1610nm  More 40KM Duplex LC SMF -2~+3dBm ≦-16dBm Tc/Ti
JP-Cx3G-DL80D 3.072Gbps CWDM 1270nm~1610nm  More 80KM Duplex LC SMF 0~+5dBm ≦-28dBm Tc/Ti
