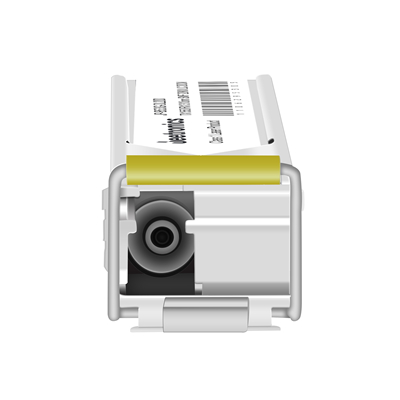

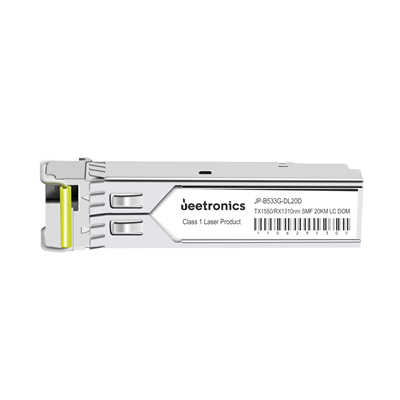

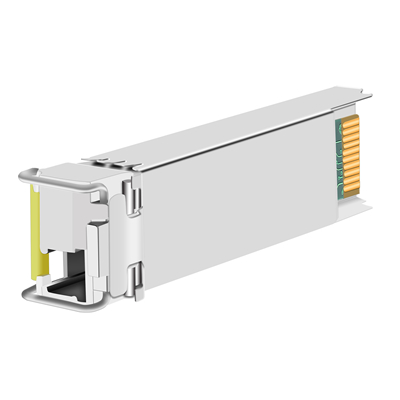

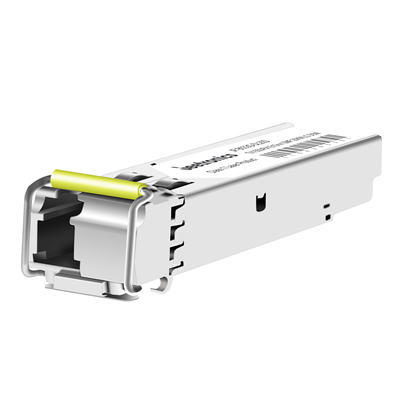

SFP 3.072Gbps TX1550/RX1310nm SMF 20KM Simplex LC Optical Transceiver

JP-B533G-DL20D is a MSA compliant 3.072Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 3.072Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 20KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-B533G-DL20D
Form Factor SFP
Standard & protocal 3GBASE BX
Data Rate 3.072Gbps
WaveLength TX1550/RX1310nm
Media SMF
Reach 20KM
Interface Simplex LC
Tx Source DFB
Rx Source PIN
Tx Power -5~0dBm
Rx Power ≦-18dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-B533G-DL20D 3.072Gbps TX1550/RX1310nm  More 20KM Simplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
JP-B353G-FL5D 3.072Gbps TX1310/RX1550nm  More 5KM Simplex LC SMF -10~-3dBm ≦-18dBm Tc/Ti
JP-B533G-DL5D 3.072Gbps TX1550/RX1310nm  More 5KM Simplex LC SMF -10~-3dBm ≦-18dBm Tc/Ti
JP-B353G-DL20D 3.072Gbps TX1310/RX1550nm  More 20KM Simplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
