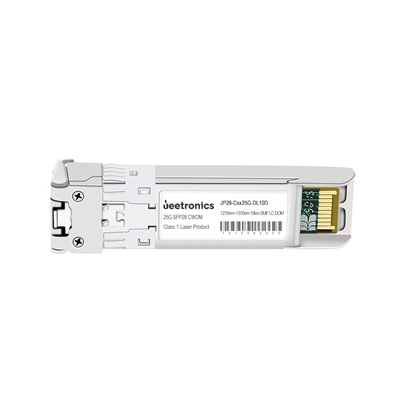

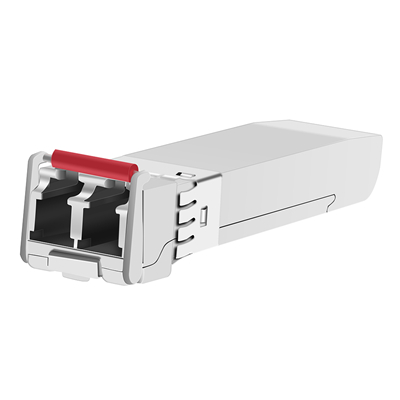

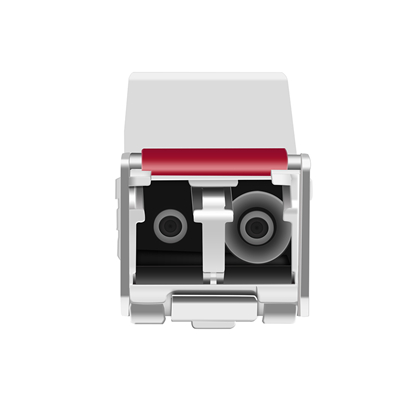

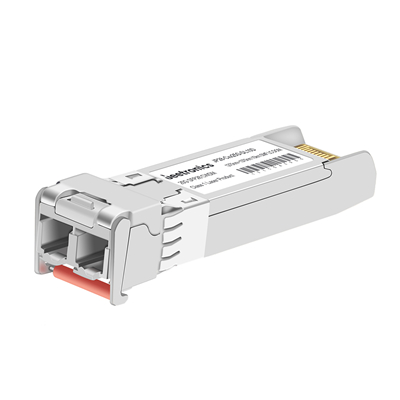

SFP28 25Gbps CWDM 1470nm~1570nm SMF 10KM Duplex LC Optical Transceiver

JP28-Cxx25G-EL10D is a MSA compliant 25Gbps SFP28 Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP28 Footprint
  • Supports upto 25Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 10KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP28 MSA Specification
  • Low power consumption

P/N JP28-Cxx25G-EL10D
Form Factor SFP28
Standard & protocal 25GBASE CWDM
Data Rate 25Gbps
WaveLength CWDM 1470nm~1570nm
Media SMF
Reach 10KM
Interface Duplex LC
Tx Source EML
Rx Source PIN
Tx Power -3.0~+6.0dBm
Rx Power ≦-12.0dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP28-Cxx25G-EL10D 25Gbps CWDM 1470nm~1570nm  More 10KM Duplex LC SMF -3.0~+6.0dBm ≦-12.0dBm Tc/Ti
JP28-Cxx25G-DL10D 25Gbps CWDM 1270nm~1370nm  More 10KM Duplex LC SMF 0~+6.0dBm ≦-14.0dBm Tc/Ti
