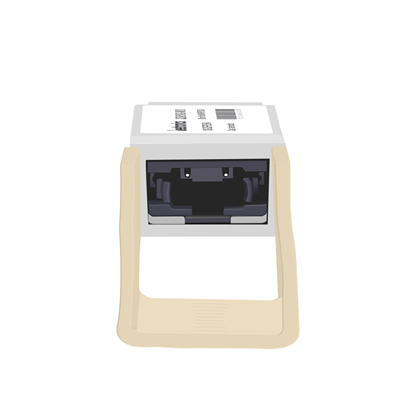

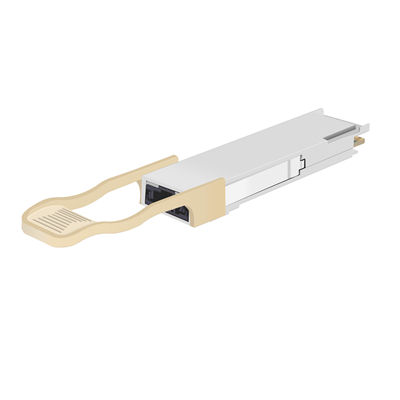

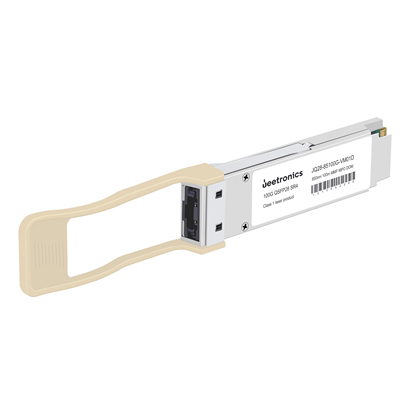

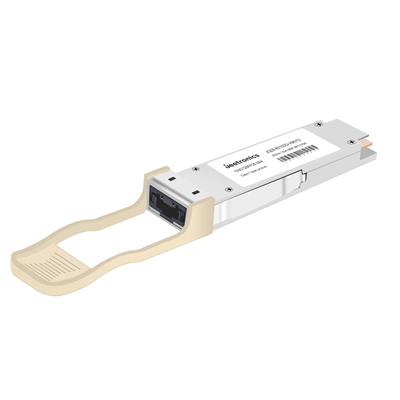

QSFP28 103.1Gbps 850nm MMF 100M MPO Optical Transceiver

JQ28-85100G-VM01D is a MSA compliant 103.1Gbps QSFP28 Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable QSFP28 Footprint
  • Supports upto 103.1Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 100M on MMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with QSFP28 MSA Specification
  • Low power consumption

P/N JQ28-85100G-VM01D
Form Factor QSFP28
Standard & protocal 100GBASE SR4
Data Rate 103.1Gbps
WaveLength 850nm
Media MMF
Reach 100M
Interface MPO
Tx Source VCSEL
Rx Source PIN
Tx Power -8.4~+2.4dBm
Rx Power ≦-9.2dBm
Temp. Tc
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JQ28-85100G-VM01D 103.1Gbps 850nm  More 100M MPO MMF -8.4~+2.4dBm ≦-9.2dBm Tc
JQ28-85112G-VM01DX 112Gbps 850nm  More 100M MPO MMF -8.4~+2.4dBm ≦-9.2dBm Tc
JQ28-CX100GX-DL2D 103.1~112Gbps CWDM 1271nm~1331nm  More 2KM Duplex LC SMF -6.5~+2.5dBm ≦-11.5dBm Tc
JQ28-13100GX-DM2D 103.1~112Gbps PSM 1310nm  More 2KM MPO SMF -1.0~+3.5dBm ≦-9dBm Tc
JQ28-L100GX-DL10D 103.1~112Gbps LAN-WDM 1294nm~1310nm  More 10KM Duplex LC SMF -4.3~+4.5dBm ≦-8.6dBm Tc
JQ28-L100G-DL10D 103.1Gbps LAN-WDM 1294nm~1310nm  More 10KM Duplex LC SMF -4.3~+4.5dBm ≦-8.6dBm Tc
JQ28-N100GX-DL10D-R 103.1~112Gbps /  More 10KM Simplex LC SMF / ≦-8.6dBm Tc
JQ28-L100GX-DL30D 103.1~112Gbps LAN-WDM 1294nm~1310nm  More 30KM Duplex LC SMF -2.5~+4.5dBm ≦-13.5dBm Tc
JQ28-L100GX-DL40D 103.1~112Gbps LAN-WDM 1294nm~1310nm  More 40KM Duplex LC SMF -2.5~+4.5dBm ≦-21dBm Tc
