- Hot-Pluggable QSFP28 Footprint
- Supports upto 103.1~112Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 10KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with QSFP28 MSA Specification
- Low power consumption

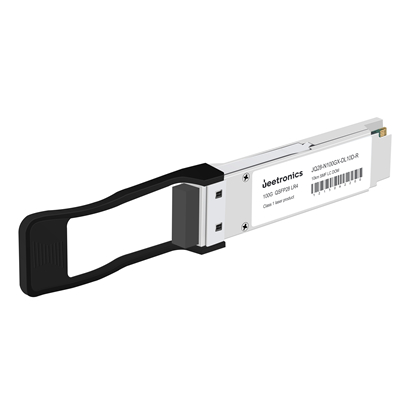

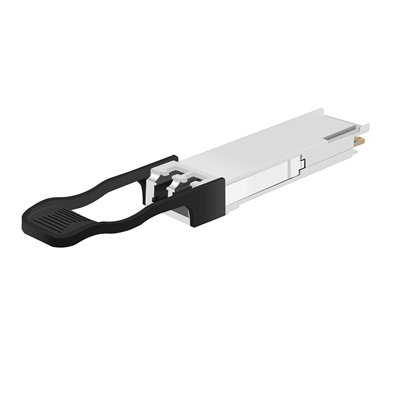

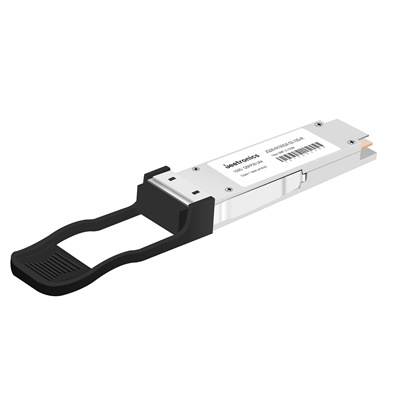

| P/N | JQ28-N100GX-DL10D-R |
| Form Factor | QSFP28 |
| Standard & protocal | 100GBASE LR4 RX only |
| Data Rate | 103.1~112Gbps |
| WaveLength | / |
| Media | SMF |
| Reach | 10KM |

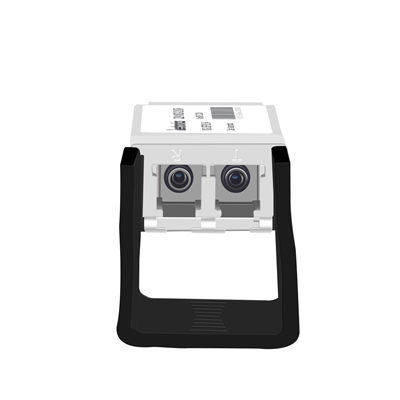

| Interface | Simplex LC |
| Tx Source | / |
| Rx Source | PIN |
| Tx Power | / |
| Rx Power | ≦-8.6dBm |
| Temp. | Tc |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JQ28-N100GX-DL10D-R | 103.1~112Gbps | / | 10KM | Simplex LC | SMF | / | ≦-8.6dBm | Tc |
| JQ28-85112G-VM01DX | 112Gbps | 850nm | 100M | MPO | MMF | -8.4~+2.4dBm | ≦-9.2dBm | Tc |
| JQ28-85100G-VM01D | 103.1Gbps | 850nm | 100M | MPO | MMF | -8.4~+2.4dBm | ≦-9.2dBm | Tc |
| JQ28-CX100GX-DL2D | 103.1~112Gbps | CWDM 1271nm~1331nm | 2KM | Duplex LC | SMF | -6.5~+2.5dBm | ≦-11.5dBm | Tc |
| JQ28-13100GX-DM2D | 103.1~112Gbps | PSM 1310nm | 2KM | MPO | SMF | -1.0~+3.5dBm | ≦-9dBm | Tc |
| JQ28-L100GX-DL10D | 103.1~112Gbps | LAN-WDM 1294nm~1310nm | 10KM | Duplex LC | SMF | -4.3~+4.5dBm | ≦-8.6dBm | Tc |
| JQ28-L100G-DL10D | 103.1Gbps | LAN-WDM 1294nm~1310nm | 10KM | Duplex LC | SMF | -4.3~+4.5dBm | ≦-8.6dBm | Tc |
| JQ28-L100GX-DL30D | 103.1~112Gbps | LAN-WDM 1294nm~1310nm | 30KM | Duplex LC | SMF | -2.5~+4.5dBm | ≦-13.5dBm | Tc |
| JQ28-L100GX-DL40D | 103.1~112Gbps | LAN-WDM 1294nm~1310nm | 40KM | Duplex LC | SMF | -2.5~+4.5dBm | ≦-21dBm | Tc |
