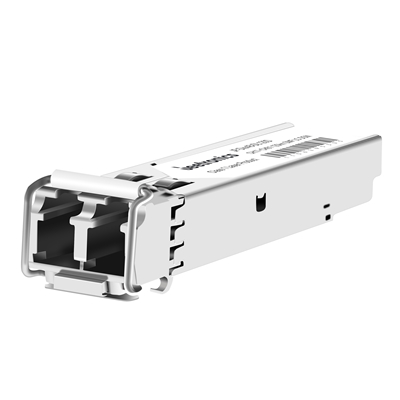

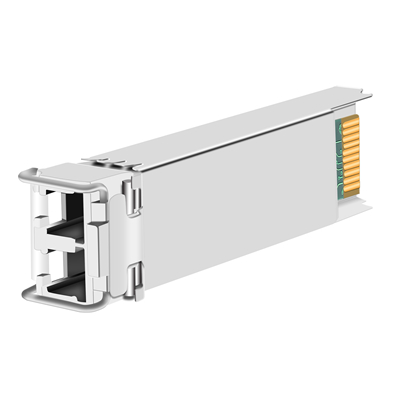

- Hot-Pluggable SFP Footprint
- Supports upto 2.5Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 120KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

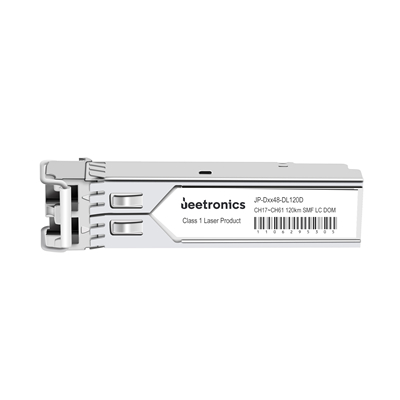

P/N | JP-Dxx48-DL120D |
Form Factor | SFP |
Standard & protocal | 2.5GBASE DWDM |
Data Rate | 2.5Gbps |
WaveLength | DWDM CH17~CH61 |
Media | SMF |
Reach | 120KM |

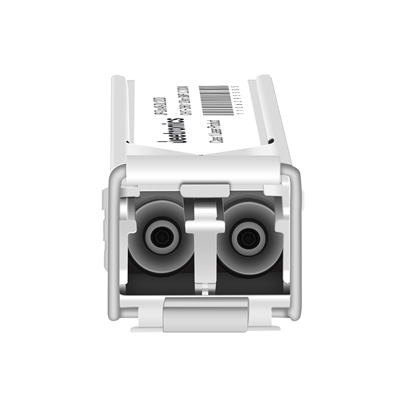

Interface | Duplex LC |
Tx Source | DFB |
Rx Source | APD |
Tx Power | 0~+5dBm |
Rx Power | ≦-31dBm |
Temp. | Tc/Ti |
P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
---|---|---|---|---|---|---|---|---|
JP-Dxx48-DL120D | 2.5Gbps | DWDM CH17~CH61 More | 120KM | Duplex LC | SMF | 0~+5dBm | ≦-31dBm | Tc/Ti |
JP-Dxx48-DL40D | 2.5Gbps | DWDM CH17~CH61 More | 40KM | Duplex LC | SMF | 0~+5dBm | ≦-18dBm | Tc/Ti |
JP-Dxx48-DL80D | 2.5Gbps | DWDM CH17~CH61 More | 80KM | Duplex LC | SMF | 0~+5dBm | ≦-28dBm | Tc/Ti |
