- Hot-Pluggable SFP Footprint
- Supports upto 2.5Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 20KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

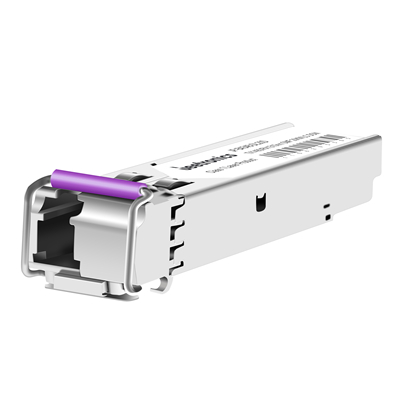

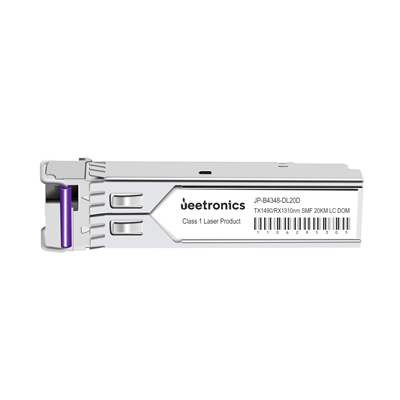

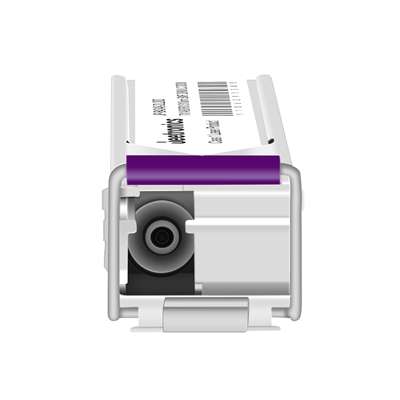

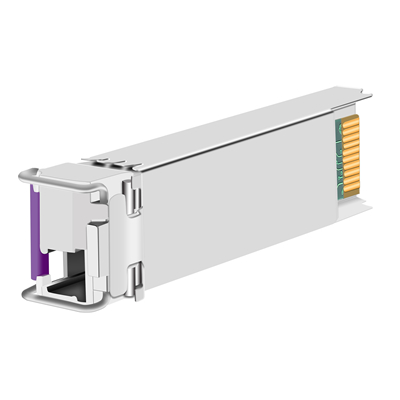

P/N | JP-B4348-DL20D |
Form Factor | SFP |
Standard & protocal | 2.5GBASE BX |
Data Rate | 2.5Gbps |
WaveLength | TX1490/RX1310nm |
Media | SMF |
Reach | 20KM |
Interface | Simplex LC |
Tx Source | DFB |
Rx Source | PIN |
Tx Power | -5~0dBm |
Rx Power | ≦-18dBm |
Temp. | Tc/Ti |
P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
---|---|---|---|---|---|---|---|---|
JP-B4348-DL20D | 2.5Gbps | TX1490/RX1310nm More | 20KM | Simplex LC | SMF | -5~0dBm | ≦-18dBm | Tc/Ti |
JP-B3548-FL2D | 2.5Gbps | TX1310/RX1550nm More | 2KM | Simplex LC | SMF | -10~-3dBm | ≦-18dBm | Tc/Ti |
JP-B5348-FL2D | 2.5Gbps | TX1550/RX1310nm More | 2KM | Simplex LC | SMF | -10~-3dBm | ≦-18dBm | Tc/Ti |
JP-B3548-DL20D | 2.5Gbps | TX1310/RX1550nm More | 20KM | Simplex LC | SMF | -5~0dBm | ≦-18dBm | Tc/Ti |
JP-B5348-DL20D | 2.5Gbps | TX1550/RX1310nm More | 20KM | Simplex LC | SMF | -5~0dBm | ≦-18dBm | Tc/Ti |
JP-B3448-DL20D | 2.5Gbps | TX1310/RX1490nm More | 20KM | Simplex LC | SMF | -5~0dBm | ≦-18dBm | Tc/Ti |
JP-B4548-DL40D | 2.5Gbps | TX1490/RX1550nm More | 40KM | Simplex LC | SMF | -2~+3dBm | ≦-19dBm | Tc/Ti |
JP-B5448-DL40D | 2.5Gbps | TX1550/RX1490nm More | 40KM | Simplex LC | SMF | -2~+3dBm | ≦-19dBm | Tc/Ti |
JP-B4548-DL80D | 2.5Gbps | TX1490/RX1550nm More | 80KM | Simplex LC | SMF | -2~+3dBm | ≦-28dBm | Tc/Ti |
JP-B5448-DL80D | 2.5Gbps | TX1550/RX1490nm More | 80KM | Simplex LC | SMF | -2~+3dBm | ≦-28dBm | Tc/Ti |
