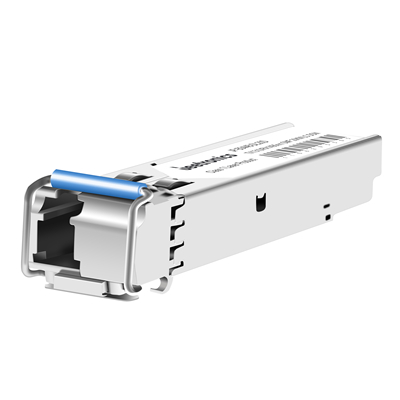

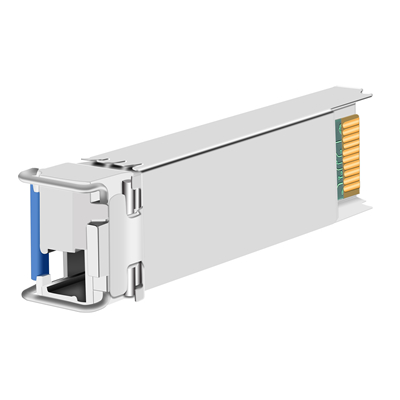

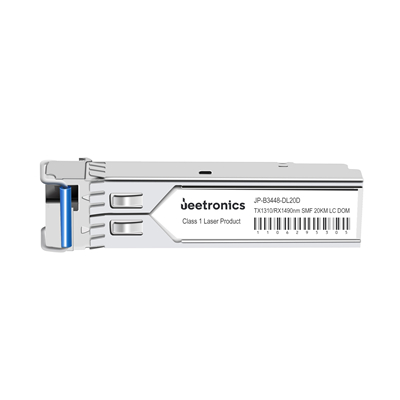

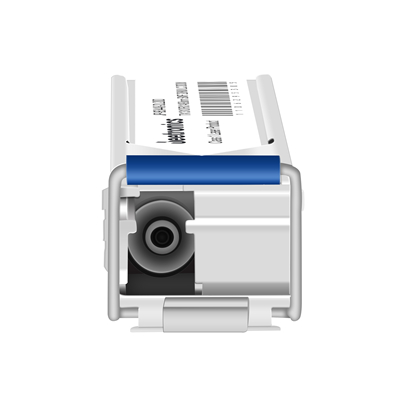

SFP 2.5Gbps TX1310/RX1490nm SMF 20KM Simplex LC Optical Transceiver

JP-B3448-DL20D is a MSA compliant 2.5Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 2.5Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 20KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-B3448-DL20D
Form Factor SFP
Standard & protocal 2.5GBASE BX
Data Rate 2.5Gbps
WaveLength TX1310/RX1490nm
Media SMF
Reach 20KM
Interface Simplex LC
Tx Source DFB
Rx Source PIN
Tx Power -5~0dBm
Rx Power ≦-18dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-B3448-DL20D 2.5Gbps TX1310/RX1490nm  More 20KM Simplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
JP-B3548-FL2D 2.5Gbps TX1310/RX1550nm  More 2KM Simplex LC SMF -10~-3dBm ≦-18dBm Tc/Ti
JP-B5348-FL2D 2.5Gbps TX1550/RX1310nm  More 2KM Simplex LC SMF -10~-3dBm ≦-18dBm Tc/Ti
JP-B3548-DL20D 2.5Gbps TX1310/RX1550nm  More 20KM Simplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
JP-B5348-DL20D 2.5Gbps TX1550/RX1310nm  More 20KM Simplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
JP-B4348-DL20D 2.5Gbps TX1490/RX1310nm  More 20KM Simplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
JP-B4548-DL40D 2.5Gbps TX1490/RX1550nm  More 40KM Simplex LC SMF -2~+3dBm ≦-19dBm Tc/Ti
JP-B5448-DL40D 2.5Gbps TX1550/RX1490nm  More 40KM Simplex LC SMF -2~+3dBm ≦-19dBm Tc/Ti
JP-B4548-DL80D 2.5Gbps TX1490/RX1550nm  More 80KM Simplex LC SMF -2~+3dBm ≦-28dBm Tc/Ti
JP-B5448-DL80D 2.5Gbps TX1550/RX1490nm  More 80KM Simplex LC SMF -2~+3dBm ≦-28dBm Tc/Ti
