- Hot-Pluggable SFP Footprint
- Supports upto FI:155Mbps / MI:1.25Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 2KM on MMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption
| P/N | JP-130324-FL2D |
| Form Factor | SFP |
| Standard & protocal | GE-100BASE-FX |
| Data Rate | FI:155Mbps / MI:1.25Gbps |
| WaveLength | 1310nm |
| Media | MMF |
| Reach | 2KM |

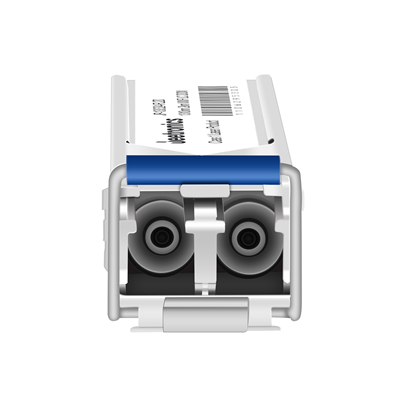

| Interface | Duplex LC |
| Tx Source | FP |
| Rx Source | PIN |
| Tx Power | -20～-14dBm |
| Rx Power | ≦-32dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JP-130324-FL2D | FI:155Mbps / MI:1.25Gbps | 1310nm More | 2KM | Duplex LC | MMF | -20～-14dBm | ≦-32dBm | Tc/Ti |
| JP-130324-FL10D | FI:155Mbps / MI:1.25Gbps | 1310nm More | 10KM | Duplex LC | SMF | -15～-8dBm | ≦-32dBm | Tc/Ti |
| JP-8503-VL2D | 155Mbps | 850nm More | 550M | Duplex LC | MMF | -10～-3dBm | ≦-24dBm | Tc/Ti |
| JP-1303-FL2D | 155Mbps | 1310nm More | 2KM | Duplex LC | MMF | -15～-8dBm | ≦-32dBm | Tc/Ti |
| JP-1303-FL20D | 155Mbps | 1310nm More | 20KM | Duplex LC | SMF | -15～-8dBm | ≦-34dBm | Tc/Ti |
| JP-1303-DL40D | 155Mbps | 1310nm More | 40KM | Duplex LC | SMF | -5～0dBm | ≦-34dBm | Tc/Ti |
| JP-1303-DL80D | 155Mbps | 1550nm More | 80KM | Duplex LC | SMF | -5～+0dBm | ≦-34dBm | Tc/Ti |
