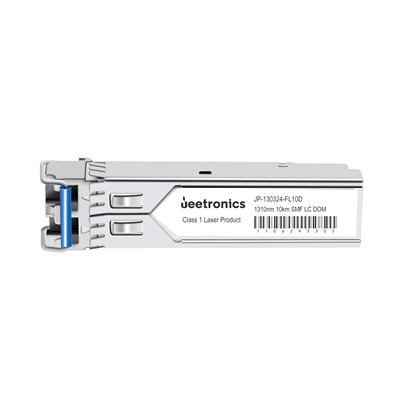

SFP FI:155Mbps / MI:1.25Gbps 1310nm SMF 10KM Duplex LC Optical Transceiver

JP-130324-FL10D is a MSA compliant FI:155Mbps / MI:1.25Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto FI:155Mbps / MI:1.25Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 10KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-130324-FL10D
Form Factor SFP
Standard & protocal GE-100BASE-LX
Data Rate FI:155Mbps / MI:1.25Gbps
WaveLength 1310nm
Media SMF
Reach 10KM

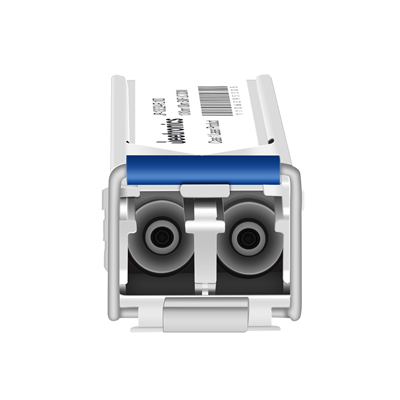

Interface Duplex LC
Tx Source FP
Rx Source PIN
Tx Power -15~-8dBm
Rx Power ≦-32dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-130324-FL10D FI:155Mbps / MI:1.25Gbps 1310nm  More 10KM Duplex LC SMF -15~-8dBm ≦-32dBm Tc/Ti
JP-130324-FL2D FI:155Mbps / MI:1.25Gbps 1310nm  More 2KM Duplex LC MMF -20~-14dBm ≦-32dBm Tc/Ti
JP-8503-VL2D 155Mbps 850nm  More 550M Duplex LC MMF -10~-3dBm ≦-24dBm Tc/Ti
JP-1303-FL2D 155Mbps 1310nm  More 2KM Duplex LC MMF -15~-8dBm ≦-32dBm Tc/Ti
JP-1303-FL20D 155Mbps 1310nm  More 20KM Duplex LC SMF -15~-8dBm ≦-34dBm Tc/Ti
JP-1303-DL40D 155Mbps 1310nm  More 40KM Duplex LC SMF -5~0dBm ≦-34dBm Tc/Ti
JP-1303-DL80D 155Mbps 1550nm  More 80KM Duplex LC SMF -5~+0dBm ≦-34dBm Tc/Ti
