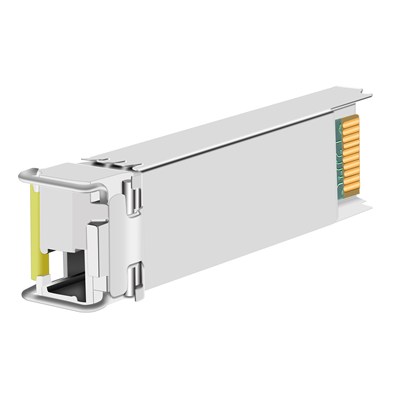

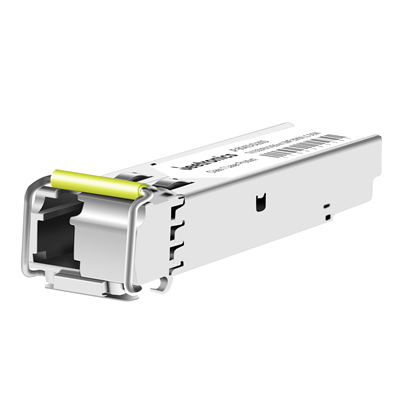

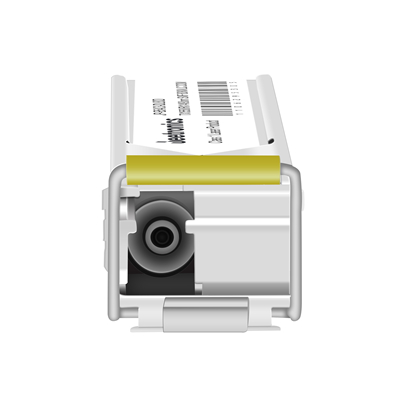

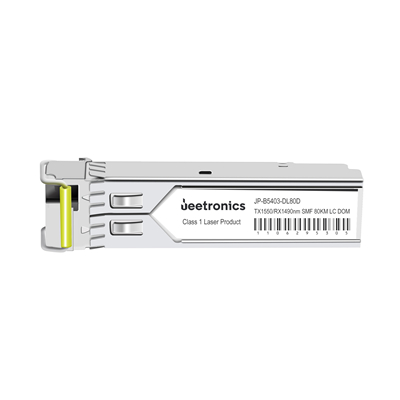

SFP 155Mbps TX1550/RX1490nm SMF 80KM Simplex LC Optical Transceiver

JP-B5403-DL80D is a MSA compliant 155Mbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 155Mbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 80KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-B5403-DL80D
Form Factor SFP
Standard & protocal 100BASE BX
Data Rate 155Mbps
WaveLength TX1550/RX1490nm
Media SMF
Reach 80KM
Interface Simplex LC
Tx Source DFB
Rx Source PIN
Tx Power -5~0dBm
Rx Power ≦-34dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-B5403-DL80D 155Mbps TX1550/RX1490nm  More 80KM Simplex LC SMF -5~0dBm ≦-34dBm Tc/Ti
JP-B3503-FL2D 155Mbps TX1310/RX1550nm  More 2KM Simplex LC SMF -15~-8dBm ≦-28dBm Tc/Ti
JP-B5303-FL2D 155Mbps TX1550/RX1310nm  More 2KM Simplex LC SMF -15~-8dBm ≦-28dBm Tc/Ti
JP-B3503-FL20D 155Mbps TX1310/RX1550nm  More 20KM Simplex LC SMF -15~-8dBm ≦-34dBm Tc/Ti
JP-B5303-FL20D 155Mbps TX1550/RX1310nm  More 20KM Simplex LC SMF -15~-8dBm ≦-34dBm Tc/Ti
JP-B3503-DL40D 155Mbps TX1310/RX1550nm  More 40KM Simplex LC SMF -5~0dBm ≦-34dBm Tc/Ti
JP-B5303-DL40D 155Mbps TX1550/RX1310nm  More 40KM Simplex LC SMF -5~0dBm ≦-34dBm Tc/Ti
JP-B4503-DL80D 155Mbps TX1490/RX1550nm  More 80KM Simplex LC SMF -5~0dBm ≦-34dBm Tc/Ti
