- Hot-Pluggable SFP Footprint
- Supports upto 155Mbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 40KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

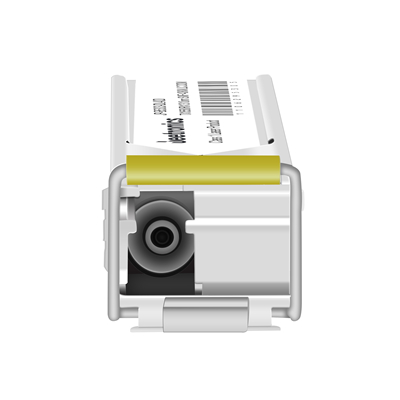

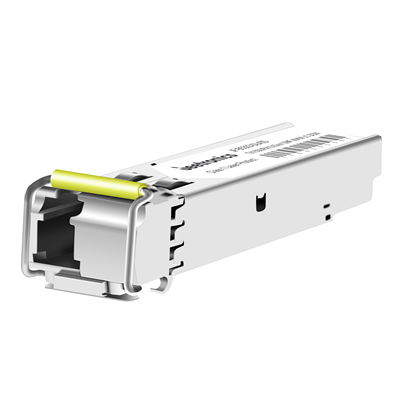

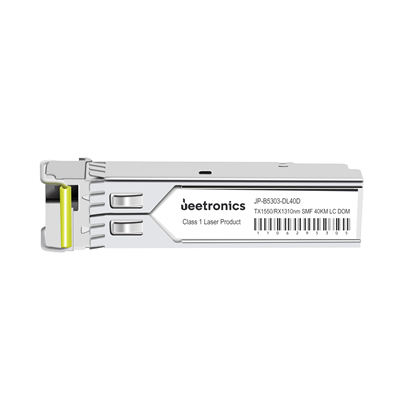

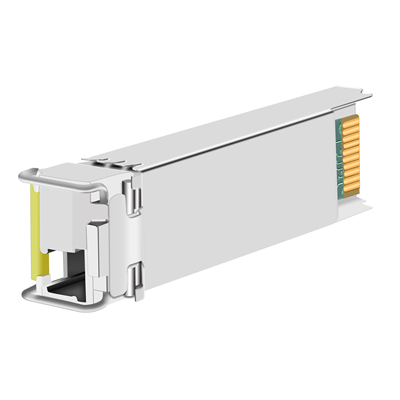

| P/N | JP-B5303-DL40D |
| Form Factor | SFP |
| Standard & protocal | 100BASE BX |
| Data Rate | 155Mbps |
| WaveLength | TX1550/RX1310nm |
| Media | SMF |
| Reach | 40KM |
| Interface | Simplex LC |
| Tx Source | DFB |
| Rx Source | PIN |
| Tx Power | -5~0dBm |
| Rx Power | ≦-34dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JP-B5303-DL40D | 155Mbps | TX1550/RX1310nm More | 40KM | Simplex LC | SMF | -5~0dBm | ≦-34dBm | Tc/Ti |
| JP-B3503-FL2D | 155Mbps | TX1310/RX1550nm More | 2KM | Simplex LC | SMF | -15~-8dBm | ≦-28dBm | Tc/Ti |
| JP-B5303-FL2D | 155Mbps | TX1550/RX1310nm More | 2KM | Simplex LC | SMF | -15~-8dBm | ≦-28dBm | Tc/Ti |
| JP-B3503-FL20D | 155Mbps | TX1310/RX1550nm More | 20KM | Simplex LC | SMF | -15~-8dBm | ≦-34dBm | Tc/Ti |
| JP-B5303-FL20D | 155Mbps | TX1550/RX1310nm More | 20KM | Simplex LC | SMF | -15~-8dBm | ≦-34dBm | Tc/Ti |
| JP-B3503-DL40D | 155Mbps | TX1310/RX1550nm More | 40KM | Simplex LC | SMF | -5~0dBm | ≦-34dBm | Tc/Ti |
| JP-B4503-DL80D | 155Mbps | TX1490/RX1550nm More | 80KM | Simplex LC | SMF | -5~0dBm | ≦-34dBm | Tc/Ti |
| JP-B5403-DL80D | 155Mbps | TX1550/RX1490nm More | 80KM | Simplex LC | SMF | -5~0dBm | ≦-34dBm | Tc/Ti |
