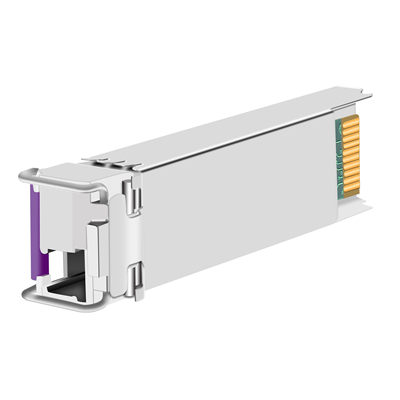

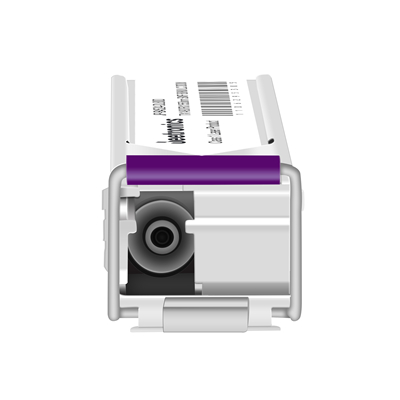

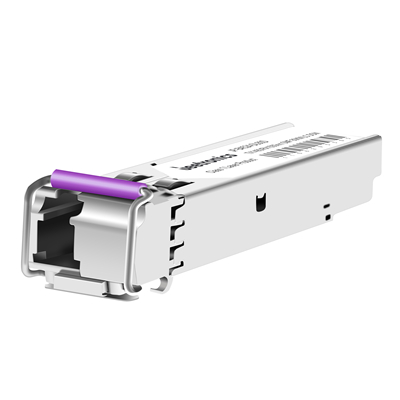

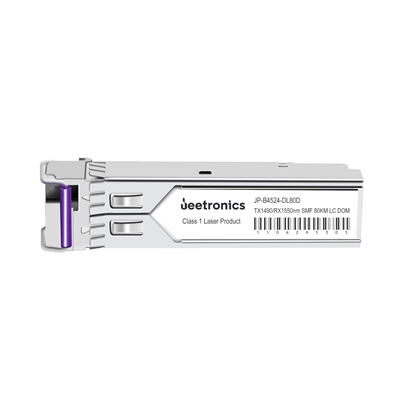

JP-B4524-DL80D

SFP 1.25Gbps TX1490/RX1550nm SMF 80KM Simplex LC Optical Transceiver

JP-B4524-DL80D is a MSA compliant 1.25Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 1.25Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 80KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-B4524-DL80D
Form Factor SFP
Standard & protocal 1000BASE BX
Data Rate 1.25Gbps
WaveLength TX1490/RX1550nm
Media SMF
Reach 80KM
Interface Simplex LC
Tx Source DFB
Rx Source PIN
Tx Power -2~+3dBm
Rx Power ≦-24dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-B4524-DL80D 1.25Gbps TX1490/RX1550nm  More 80KM Simplex LC SMF -2~+3dBm ≦-24dBm Tc/Ti
JP-B3524-FL05D 1.25Gbps TX1310/RX1550nm  More 500M Simplex LC MMF -9~-3dBm ≦-21dBm Tc/Ti
JP-B5324-FL05D 1.25Gbps TX1550/RX1310nm  More 500M Simplex LC MMF -9~-3dBm ≦-21dBm Tc/Ti
JP-B3524-FL3D 1.25Gbps TX1310/RX1550nm  More 3KM Simplex LC SMF -9~-3dBm ≦-21dBm Tc/Ti
JP-B5324-FL3D 1.25Gbps TX1550/RX1310nm  More 3KM Simplex LC SMF -9~-3dBm ≦-21dBm Tc/Ti
JP-B3524-FL20D 1.25Gbps TX1310/RX1550nm  More 20KM Simplex LC SMF -9~-3dBm ≦-23dBm Tc/Ti
JP-B5324-DL20D 1.25Gbps TX1550/RX1310nm  More 20KM Simplex LC SMF -9~-3dBm ≦-23dBm Tc/Ti
JP-B3424-FL20D 1.25Gbps TX1310/RX1490nm  More 20KM Simplex LC SMF -9~-3dBm ≦-23dBm Tc/Ti
JP-B4324-DL20D 1.25Gbps TX1490/RX1310nm  More 20KM Simplex LC SMF -9~-3dBm ≦-23dBm Tc/Ti
JP-B3524-DL40D 1.25Gbps TX1310/RX1550nm  More 40KM Simplex LC SMF -2~+3dBm ≦-23dBm Tc/Ti
JP-B5324-DL40D 1.25Gbps TX1550/RX1310nm  More 40KM Simplex LC SMF -5~0dBm ≦-23dBm Tc/Ti
JP-B3424-DL40D 1.25Gbps TX1310/RX1490nm  More 40KM Simplex LC SMF -2~+3dBm ≦-23dBm Tc/Ti
JP-B4324-DL40D 1.25Gbps TX1490/RX1310nm  More 40KM Simplex LC SMF -5~0dBm ≦-23dBm Tc/Ti
JP-B5424-DL80D 1.25Gbps TX1550/RX1490nm  More 80KM Simplex LC SMF -2~+3dBm ≦-24dBm Tc/Ti
JP-B4524-DL120D 1.25Gbps TX1490/RX1550nm  More 120KM Simplex LC SMF -1~+4dBm ≦-32dBm Tc/Ti
JP-B5424-DL120D 1.25Gbps TX1550/RX1490nm  More 120KM Simplex LC SMF -1~+4dBm ≦-32dBm Tc/Ti
