- Hot-Pluggable SFP Footprint
- Supports upto 1.25Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 40KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

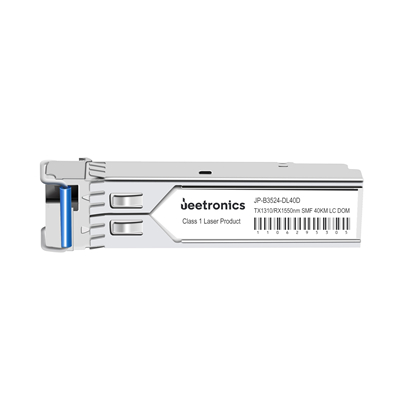

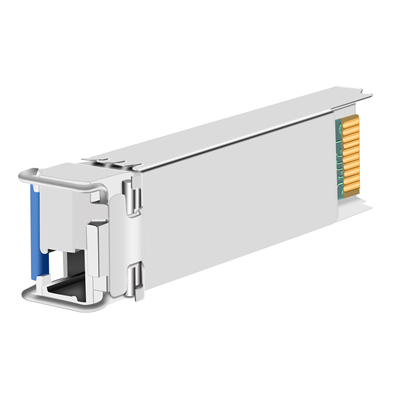

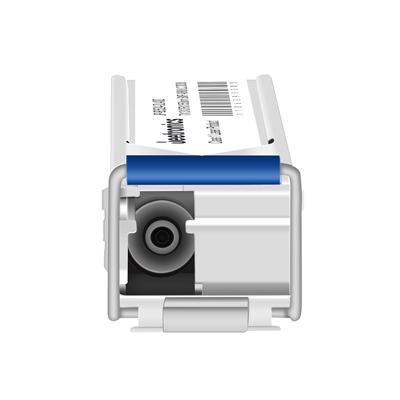

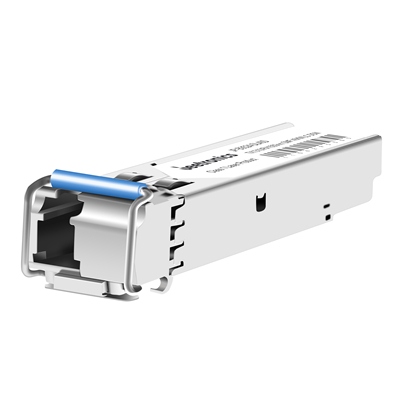

P/N | JP-B3524-DL40D |
Form Factor | SFP |
Standard & protocal | 1000BASE BX |
Data Rate | 1.25Gbps |
WaveLength | TX1310/RX1550nm |
Media | SMF |
Reach | 40KM |
Interface | Simplex LC |
Tx Source | DFB |
Rx Source | PIN |
Tx Power | -2~+3dBm |
Rx Power | ≦-23dBm |
Temp. | Tc/Ti |
P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
---|---|---|---|---|---|---|---|---|
JP-B3524-DL40D | 1.25Gbps | TX1310/RX1550nm More | 40KM | Simplex LC | SMF | -2~+3dBm | ≦-23dBm | Tc/Ti |
JP-B3524-FL05D | 1.25Gbps | TX1310/RX1550nm More | 500M | Simplex LC | MMF | -9~-3dBm | ≦-21dBm | Tc/Ti |
JP-B5324-FL05D | 1.25Gbps | TX1550/RX1310nm More | 500M | Simplex LC | MMF | -9~-3dBm | ≦-21dBm | Tc/Ti |
JP-B3524-FL3D | 1.25Gbps | TX1310/RX1550nm More | 3KM | Simplex LC | SMF | -9~-3dBm | ≦-21dBm | Tc/Ti |
JP-B5324-FL3D | 1.25Gbps | TX1550/RX1310nm More | 3KM | Simplex LC | SMF | -9~-3dBm | ≦-21dBm | Tc/Ti |
JP-B3524-FL20D | 1.25Gbps | TX1310/RX1550nm More | 20KM | Simplex LC | SMF | -9~-3dBm | ≦-23dBm | Tc/Ti |
JP-B5324-DL20D | 1.25Gbps | TX1550/RX1310nm More | 20KM | Simplex LC | SMF | -9~-3dBm | ≦-23dBm | Tc/Ti |
JP-B3424-FL20D | 1.25Gbps | TX1310/RX1490nm More | 20KM | Simplex LC | SMF | -9~-3dBm | ≦-23dBm | Tc/Ti |
JP-B4324-DL20D | 1.25Gbps | TX1490/RX1310nm More | 20KM | Simplex LC | SMF | -9~-3dBm | ≦-23dBm | Tc/Ti |
JP-B5324-DL40D | 1.25Gbps | TX1550/RX1310nm More | 40KM | Simplex LC | SMF | -5~0dBm | ≦-23dBm | Tc/Ti |
JP-B3424-DL40D | 1.25Gbps | TX1310/RX1490nm More | 40KM | Simplex LC | SMF | -2~+3dBm | ≦-23dBm | Tc/Ti |
JP-B4324-DL40D | 1.25Gbps | TX1490/RX1310nm More | 40KM | Simplex LC | SMF | -5~0dBm | ≦-23dBm | Tc/Ti |
JP-B4524-DL80D | 1.25Gbps | TX1490/RX1550nm More | 80KM | Simplex LC | SMF | -2~+3dBm | ≦-24dBm | Tc/Ti |
JP-B5424-DL80D | 1.25Gbps | TX1550/RX1490nm More | 80KM | Simplex LC | SMF | -2~+3dBm | ≦-24dBm | Tc/Ti |
JP-B4524-DL120D | 1.25Gbps | TX1490/RX1550nm More | 120KM | Simplex LC | SMF | -1~+4dBm | ≦-32dBm | Tc/Ti |
JP-B5424-DL120D | 1.25Gbps | TX1550/RX1490nm More | 120KM | Simplex LC | SMF | -1~+4dBm | ≦-32dBm | Tc/Ti |
