- Hot-Pluggable CSFP Footprint
- Supports upto 1.25Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 20KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with CSFP MSA Specification
- Low power consumption

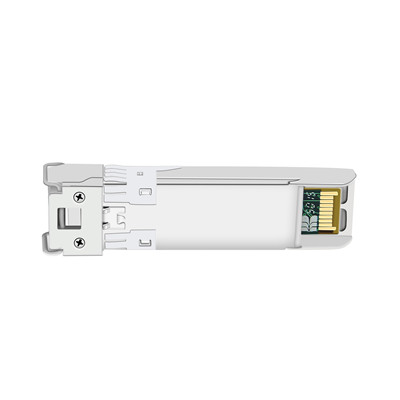

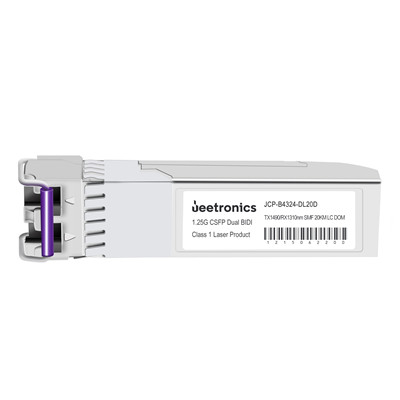

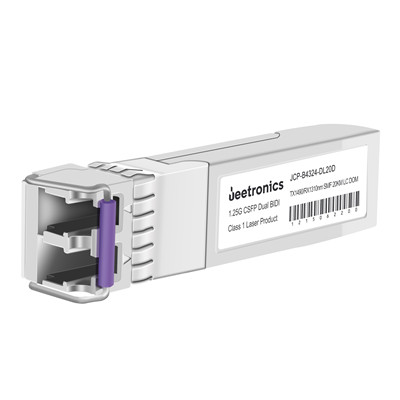

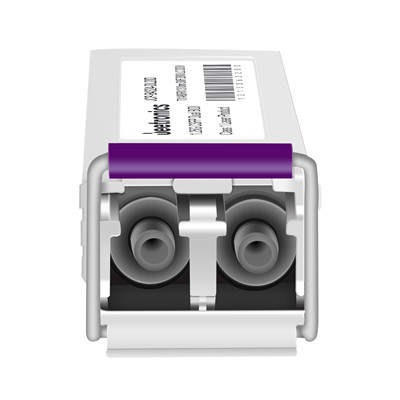

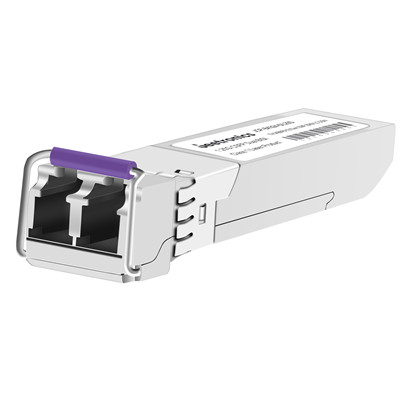

| P/N | JCP-B4324-DL20D |
| Form Factor | CSFP |
| Standard & protocal | 1000BASE 2BX |
| Data Rate | 1.25Gbps |
| WaveLength | TX1490/RX1310nm |
| Media | SMF |
| Reach | 20KM |
| Interface | Duplex LC |
| Tx Source | DFB |
| Rx Source | PIN |
| Tx Power | -9~-3dBm |
| Rx Power | ≦-23dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JCP-B4324-DL20D | 1.25Gbps | TX1490/RX1310nm More | 20KM | Duplex LC | SMF | -9~-3dBm | ≦-23dBm | Tc/Ti |
| JCP-B3524-FL20D | 1.25Gbps | TX1310/RX1550nm More | 20KM | Duplex LC | SMF | -9~-3dBm | ≦-23dBm | Tc/Ti |
| JCP-B5324-DL20D | 1.25Gbps | TX1550/RX1310nm More | 20KM | Duplex LC | SMF | -9~-3dBm | ≦-23dBm | Tc/Ti |
| JCS-B3424-FL20D | 1.25Gbps | TX1310/RX1490nm More | 20KM | Duplex LC | SMF | -9~-3dBm | ≦-23dBm | Tc/Ti |
