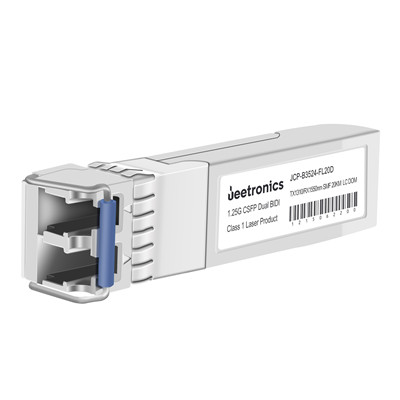

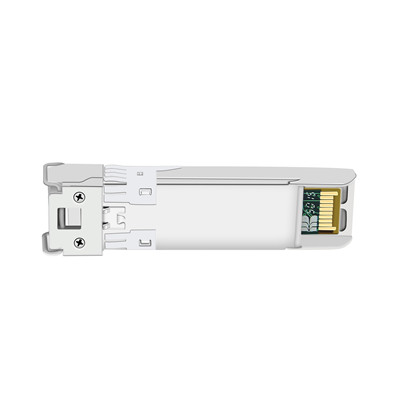

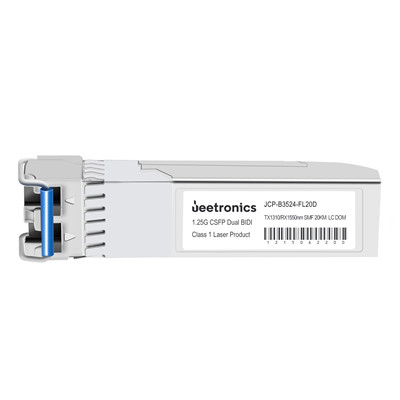

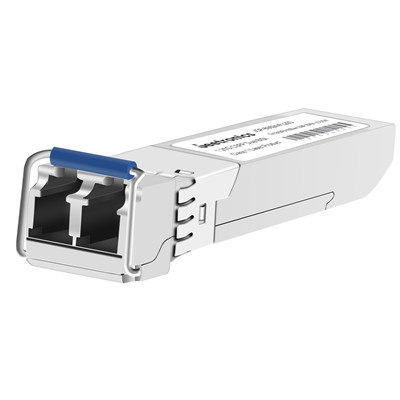

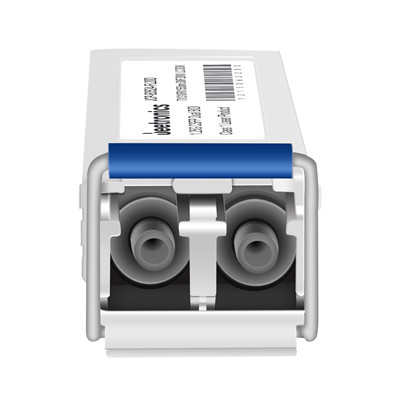

CSFP 1.25Gbps TX1310/RX1550nm SMF 20KM Duplex LC Optical Transceiver

JCP-B3524-FL20D is a MSA compliant 1.25Gbps CSFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable CSFP Footprint
  • Supports upto 1.25Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 20KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with CSFP MSA Specification
  • Low power consumption

P/N JCP-B3524-FL20D
Form Factor CSFP
Standard & protocal 1000BASE 2BX
Data Rate 1.25Gbps
WaveLength TX1310/RX1550nm
Media SMF
Reach 20KM
Interface Duplex LC
Tx Source FP
Rx Source PIN
Tx Power -9~-3dBm
Rx Power ≦-23dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JCP-B3524-FL20D 1.25Gbps TX1310/RX1550nm  More 20KM Duplex LC SMF -9~-3dBm ≦-23dBm Tc/Ti
JCP-B5324-DL20D 1.25Gbps TX1550/RX1310nm  More 20KM Duplex LC SMF -9~-3dBm ≦-23dBm Tc/Ti
JCS-B3424-FL20D 1.25Gbps TX1310/RX1490nm  More 20KM Duplex LC SMF -9~-3dBm ≦-23dBm Tc/Ti
JCP-B4324-DL20D 1.25Gbps TX1490/RX1310nm  More 20KM Duplex LC SMF -9~-3dBm ≦-23dBm Tc/Ti
