Home > Active Pluggable Transceivers > XFP > 10G XFP CWDM > JXP-Cxx10G-EL80D
JXP-Cxx10G-EL80D JXP-Cxx10G-EL80D JXP-Cxx10G-EL80D

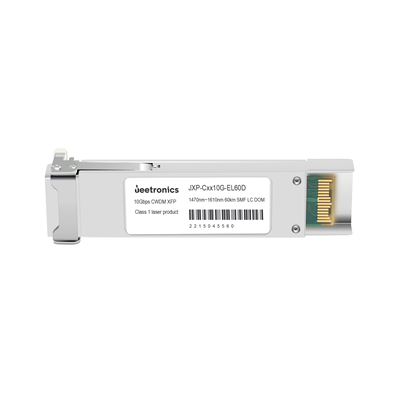

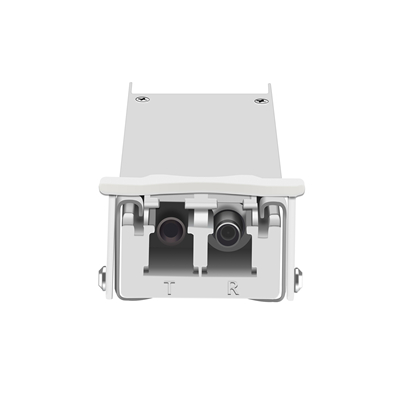

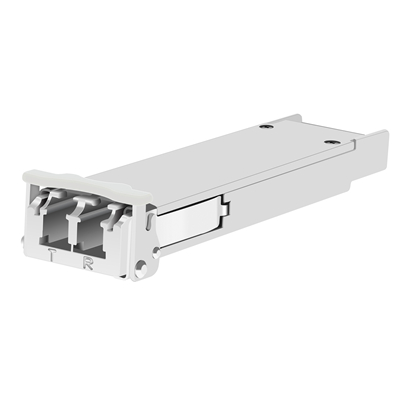

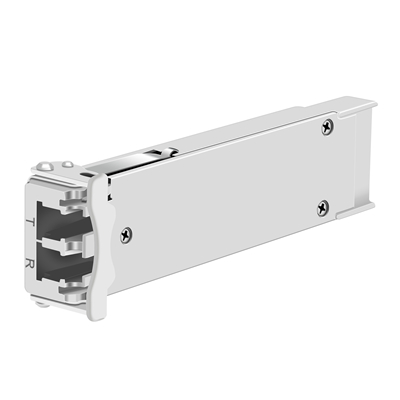

XFP 10Gbps CWDM 1470nm~1610nm SMF 80KM Duplex LC Optical Transceiver

JXP-Cxx10G-EL80D is a MSA compliant 10Gbps XFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • more
  • Hot-Pluggable XFP Footprint
  • Supports upto 10Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 80KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with XFP MSA Specification
  • Low power consumption

P/N JXP-Cxx10G-EL80D
Form Factor XFP
Standard & protocal 10GBASE CWDM
Data Rate 10Gbps
WaveLength CWDM 1470nm~1610nm
Media SMF
Reach 80KM
Interface Duplex LC
Tx Source EML
Rx Source APD
Tx Power -1~+4dBm
Rx Power ≦-23dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JXP-Cxx10G-EL80D 10Gbps CWDM 1470nm~1610nm  More 80KM Duplex LC SMF -1~+4dBm ≦-23dBm Tc/Ti
JXP-Cxx10G-DL10D 10Gbps CWDM 1270nm~1610nm  More 10KM Duplex LC SMF -6~-1dBm ≦-14.6dBm Tc/Ti
JXP-Cxx10G-DL20D 10Gbps CWDM 1270nm~1610nm  More 20KM Duplex LC SMF -1~+3dBm ≦-15dBm Tc/Ti
JXP-Cxx10G-DL40D 10Gbps CWDM 1270nm~1450nm  More 40KM Duplex LC SMF 0~+5dBm ≦-15dBm Tc/Ti
JXP-Cxx10G-EL40D 10Gbps CWDM 1470nm~1610nm  More 40KM Duplex LC SMF -1~+5dBm ≦-16dBm Tc/Ti
JXP-Cxx10G-DL60D 10Gbps CWDM 1270nm~1450nm  More 60KM Duplex LC SMF 0~+5dBm ≦-22dBm Tc/Ti
