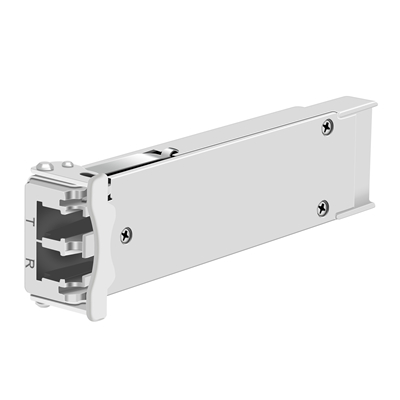

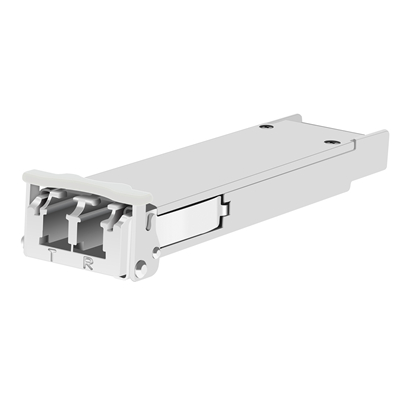

- Hot-Pluggable XFP Footprint
- Supports upto 10Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 40KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with XFP MSA Specification
- Low power consumption

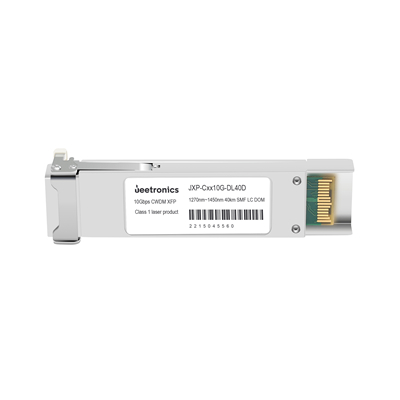

| P/N | JXP-Cxx10G-DL40D |
| Form Factor | XFP |
| Standard & protocal | 10GBASE CWDM |
| Data Rate | 10Gbps |
| WaveLength | CWDM 1270nm~1450nm |
| Media | SMF |
| Reach | 40KM |

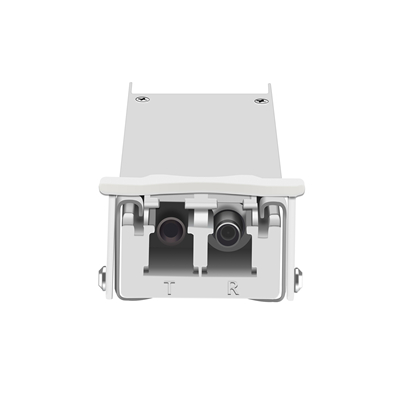

| Interface | Duplex LC |
| Tx Source | DFB |
| Rx Source | PIN |
| Tx Power | 0～+5dBm |
| Rx Power | ≦-15dBm |
| Temp. | Tc/Ti |

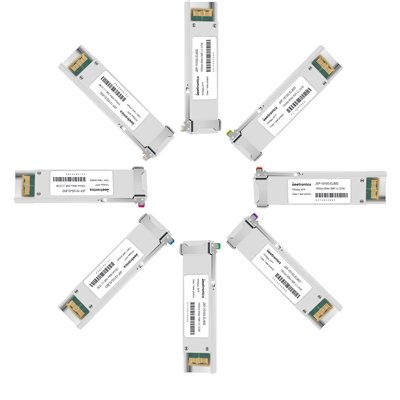

| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JXP-Cxx10G-DL40D | 10Gbps | CWDM 1270nm~1450nm More | 40KM | Duplex LC | SMF | 0～+5dBm | ≦-15dBm | Tc/Ti |
| JXP-Cxx10G-DL10D | 10Gbps | CWDM 1270nm~1610nm More | 10KM | Duplex LC | SMF | -6～-1dBm | ≦-14.6dBm | Tc/Ti |
| JXP-Cxx10G-DL20D | 10Gbps | CWDM 1270nm~1610nm More | 20KM | Duplex LC | SMF | -1～+3dBm | ≦-15dBm | Tc/Ti |
| JXP-Cxx10G-EL40D | 10Gbps | CWDM 1470nm~1610nm More | 40KM | Duplex LC | SMF | -1～+5dBm | ≦-16dBm | Tc/Ti |
| JXP-Cxx10G-DL60D | 10Gbps | CWDM 1270nm~1450nm More | 60KM | Duplex LC | SMF | 0～+5dBm | ≦-22dBm | Tc/Ti |
| JXP-Cxx10G-EL80D | 10Gbps | CWDM 1470nm~1610nm More | 80KM | Duplex LC | SMF | -1～+4dBm | ≦-23dBm | Tc/Ti |
