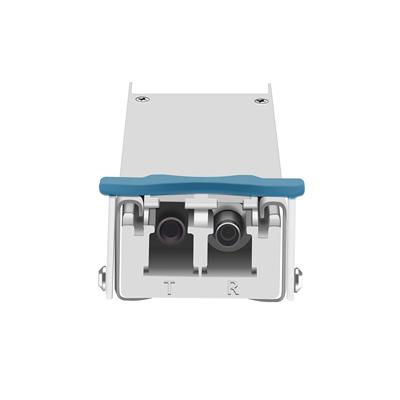

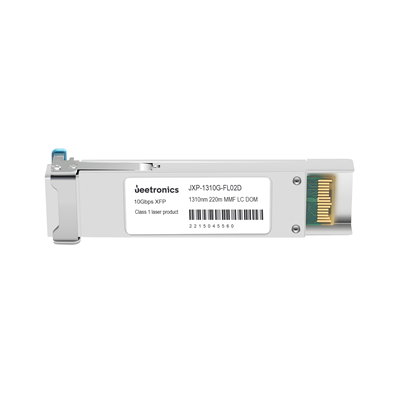

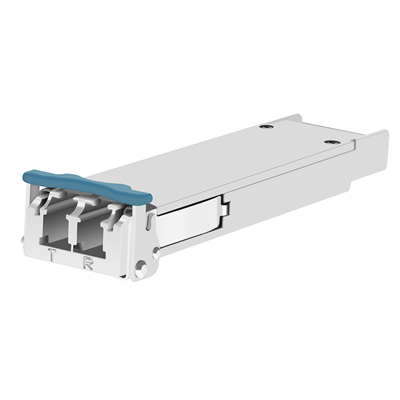

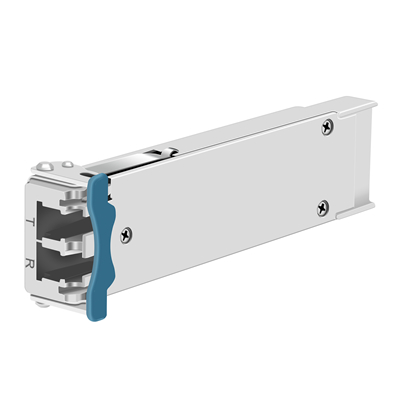

XFP 10Gbps 1310nm MMF 220M Duplex LC Optical Transceiver

JXP-1310G-FL02D is a MSA compliant 10Gbps XFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable XFP Footprint
  • Supports upto 10Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 220M on MMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with XFP MSA Specification
  • Low power consumption

P/N JXP-1310G-FL02D
Form Factor XFP
Standard & protocal 10GBASE LRM
Data Rate 10Gbps
WaveLength 1310nm
Media MMF
Reach 220M
Interface Duplex LC
Tx Source FP
Rx Source PIN
Tx Power -7.3~-1dBm
Rx Power ≦-11.1dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JXP-1310G-FL02D 10Gbps 1310nm  More 220M Duplex LC MMF -7.3~-1dBm ≦-11.1dBm Tc/Ti
JXP-8510G-VL03D 10Gbps 850nm  More 300M Duplex LC MMF -6~-1dBm ≦-11.1dBm Tc/Ti
JXP-1310G-FL2D 10Gbps 1310nm  More 2KM Duplex LC SMF -8.2~+0.5dBm ≦-12.6dBm Tc/Ti
JXP-1310G-DL10D 10Gbps 1310nm  More 10KM Duplex LC SMF -6~0dBm ≦-12.6dBm Tc/Ti
JXP-1310G-DL20D 10Gbps 1310nm  More 20KM Duplex LC SMF -4~+0.5dBm ≦-12.6dBm Tc/Ti
JXP-1310G-DL40D 10Gbps 1310nm  More 40KM Duplex LC SMF 0~+5dBm ≦-16dBm Tc/Ti
JXP-1510G-EL40D 10Gbps 1550nm  More 40KM Duplex LC SMF -1~+4dBm ≦-16dBm Tc/Ti
JXP-1510G-EL80D 10Gbps 1550nm  More 80KM Duplex LC SMF 0~+5dBm ≦-23dBm Tc/Ti
JXP-1510G-EL100D 10Gbps 1550nm  More 100KM Duplex LC SMF 0~+5dBm ≦-24.5dBm Tc/Ti
