- Hot-Pluggable XFP Footprint
- Supports upto 10Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 10KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with XFP MSA Specification
- Low power consumption

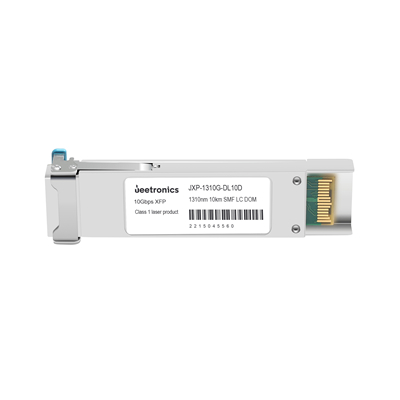

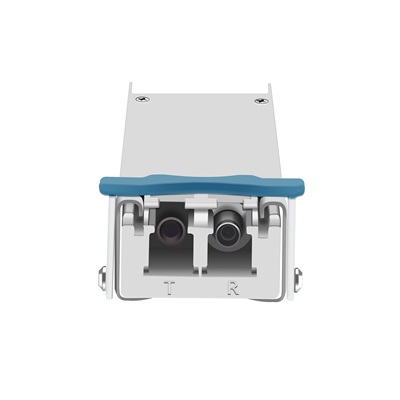

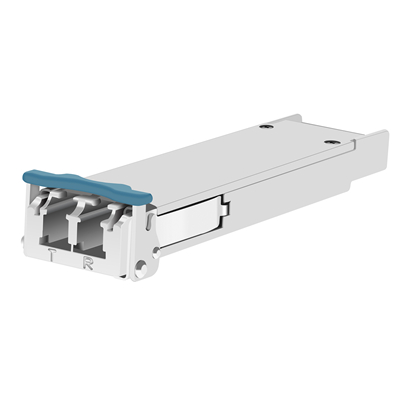

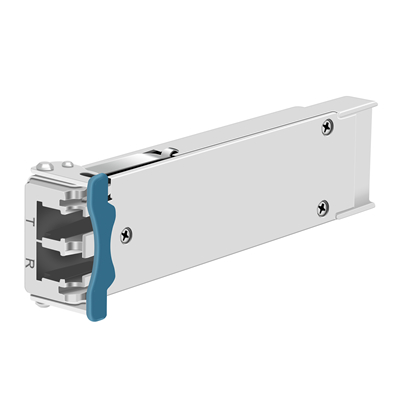

P/N | JXP-1310G-DL10D |
Form Factor | XFP |
Standard & protocal | 10GBASE LR |
Data Rate | 10Gbps |
WaveLength | 1310nm |
Media | SMF |
Reach | 10KM |
Interface | Duplex LC |
Tx Source | DFB |
Rx Source | PIN |
Tx Power | -6~0dBm |
Rx Power | ≦-12.6dBm |
Temp. | Tc/Ti |
P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
---|---|---|---|---|---|---|---|---|
JXP-1310G-DL10D | 10Gbps | 1310nm More | 10KM | Duplex LC | SMF | -6~0dBm | ≦-12.6dBm | Tc/Ti |
JXP-8510G-VL03D | 10Gbps | 850nm More | 300M | Duplex LC | MMF | -6~-1dBm | ≦-11.1dBm | Tc/Ti |
JXP-1310G-FL02D | 10Gbps | 1310nm More | 220M | Duplex LC | MMF | -7.3~-1dBm | ≦-11.1dBm | Tc/Ti |
JXP-1310G-FL2D | 10Gbps | 1310nm More | 2KM | Duplex LC | SMF | -8.2~+0.5dBm | ≦-12.6dBm | Tc/Ti |
JXP-1310G-DL20D | 10Gbps | 1310nm More | 20KM | Duplex LC | SMF | -4~+0.5dBm | ≦-12.6dBm | Tc/Ti |
JXP-1310G-DL40D | 10Gbps | 1310nm More | 40KM | Duplex LC | SMF | 0~+5dBm | ≦-16dBm | Tc/Ti |
JXP-1510G-EL40D | 10Gbps | 1550nm More | 40KM | Duplex LC | SMF | -1~+4dBm | ≦-16dBm | Tc/Ti |
JXP-1510G-EL80D | 10Gbps | 1550nm More | 80KM | Duplex LC | SMF | 0~+5dBm | ≦-23dBm | Tc/Ti |
JXP-1510G-EL100D | 10Gbps | 1550nm More | 100KM | Duplex LC | SMF | 0~+5dBm | ≦-24.5dBm | Tc/Ti |
