- Hot-Pluggable XFP Footprint
- Supports upto 10Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 40KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with XFP MSA Specification
- Low power consumption

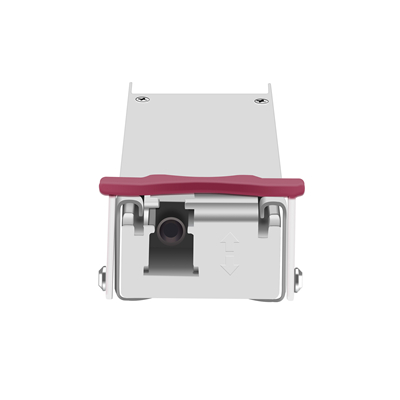

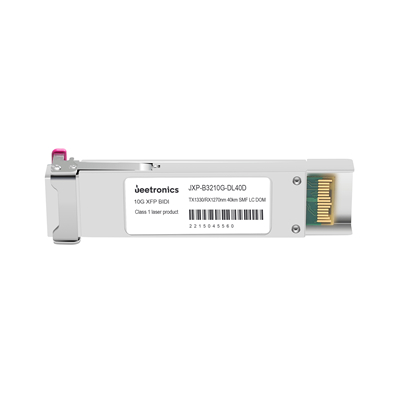

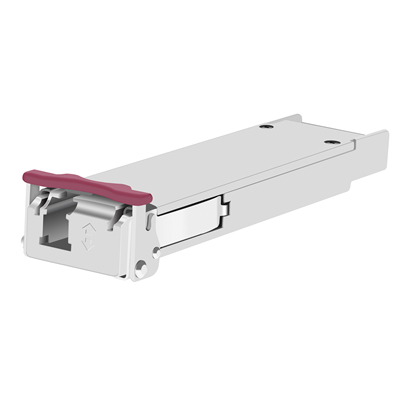

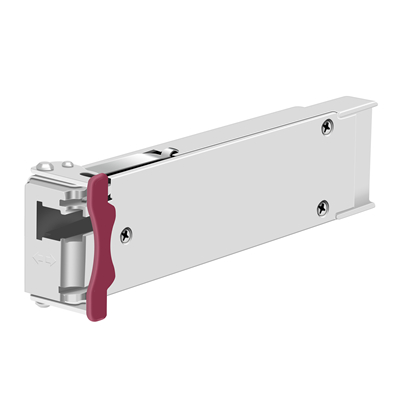

| P/N | JXP-B3210G-DL40D |
| Form Factor | XFP |
| Standard & protocal | 10GBASE BX |
| Data Rate | 10Gbps |
| WaveLength | TX1330/RX1270nm |
| Media | SMF |
| Reach | 40KM |
| Interface | Simplex LC |
| Tx Source | DFB |
| Rx Source | PIN |
| Tx Power | 0~+5dBm |
| Rx Power | ≦-15dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JXP-B3210G-DL40D | 10Gbps | TX1330/RX1270nm More | 40KM | Simplex LC | SMF | 0~+5dBm | ≦-15dBm | Tc/Ti |
| JXP-B2310G-DL10D | 10Gbps | TX1270/RX1330nm More | 10KM | Simplex LC | SMF | -6~-1dBm | ≦-14dBm | Tc/Ti |
| JXP-B3210G-DL10D | 10Gbps | TX1330/RX1270nm More | 10KM | Simplex LC | SMF | -6~-1dBm | ≦-14dBm | Tc/Ti |
| JXP-B2310G-DL20D | 10Gbps | TX1270/RX1330nm More | 20KM | Simplex LC | SMF | -2~+3dBm | ≦-15dBm | Tc/Ti |
| JXP-B3210G-DL20D | 10Gbps | TX1330/RX1270nm More | 20KM | Simplex LC | SMF | -2~+3dBm | ≦-15dBm | Tc/Ti |
| JXP-B2310G-DL40D | 10Gbps | TX1270/RX1330nm More | 40KM | Simplex LC | SMF | 0~+5dBm | ≦-15dBm | Tc/Ti |
| JXP-B2310G-DL60D | 10Gbps | TX1270/RX1330nm More | 60KM | Simplex LC | SMF | +1~+5dBm | ≦-20dBm | Tc/Ti |
| JXP-B3210G-DL60D | 10Gbps | TX1330/RX1270nm More | 60KM | Simplex LC | SMF | +1~+5dBm | ≦-20dBm | Tc/Ti |
| JXP-B2310G-DL80D | 10Gbps | TX1490/RX1550nm More | 80KM | Simplex LC | SMF | +1~+5dBm | ≦-23dBm | Tc/Ti |
| JXP-B3210G-DL80D | 10Gbps | TX1550/RX1490nm More | 80KM | Simplex LC | SMF | +1~+5dBm | ≦-23dBm | Tc/Ti |
