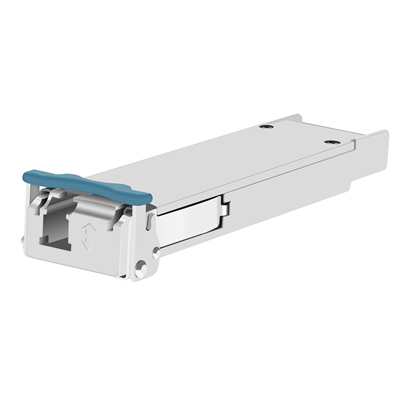

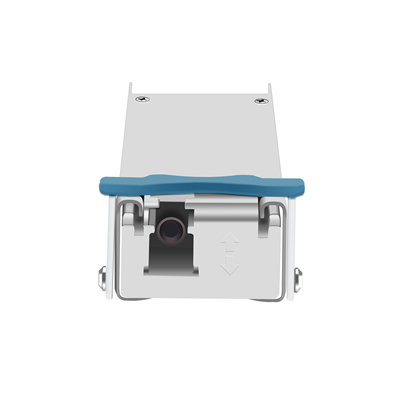

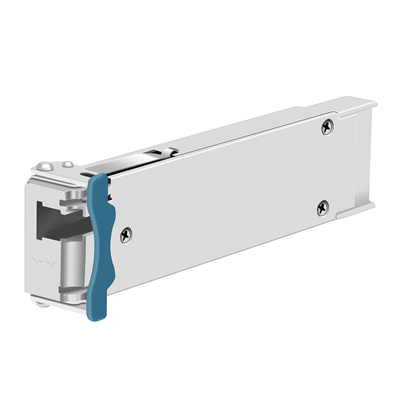

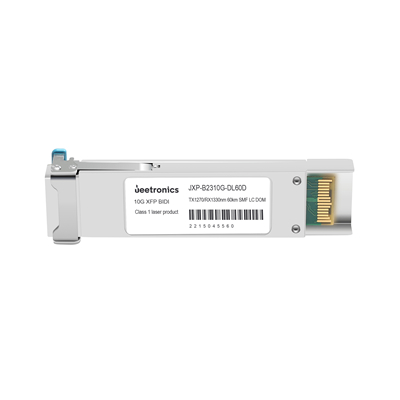

XFP 10Gbps TX1270/RX1330nm SMF 60KM Simplex LC Optical Transceiver

JXP-B2310G-DL60D is a MSA compliant 10Gbps XFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable XFP Footprint
  • Supports upto 10Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 60KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with XFP MSA Specification
  • Low power consumption

P/N JXP-B2310G-DL60D
Form Factor XFP
Standard & protocal 10GBASE BX
Data Rate 10Gbps
WaveLength TX1270/RX1330nm
Media SMF
Reach 60KM
Interface Simplex LC
Tx Source DFB
Rx Source APD
Tx Power +1~+5dBm
Rx Power ≦-20dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JXP-B2310G-DL60D 10Gbps TX1270/RX1330nm  More 60KM Simplex LC SMF +1~+5dBm ≦-20dBm Tc/Ti
JXP-B2310G-DL10D 10Gbps TX1270/RX1330nm  More 10KM Simplex LC SMF -6~-1dBm ≦-14dBm Tc/Ti
JXP-B3210G-DL10D 10Gbps TX1330/RX1270nm  More 10KM Simplex LC SMF -6~-1dBm ≦-14dBm Tc/Ti
JXP-B2310G-DL20D 10Gbps TX1270/RX1330nm  More 20KM Simplex LC SMF -2~+3dBm ≦-15dBm Tc/Ti
JXP-B3210G-DL20D 10Gbps TX1330/RX1270nm  More 20KM Simplex LC SMF -2~+3dBm ≦-15dBm Tc/Ti
JXP-B2310G-DL40D 10Gbps TX1270/RX1330nm  More 40KM Simplex LC SMF 0~+5dBm ≦-15dBm Tc/Ti
JXP-B3210G-DL40D 10Gbps TX1330/RX1270nm  More 40KM Simplex LC SMF 0~+5dBm ≦-15dBm Tc/Ti
JXP-B3210G-DL60D 10Gbps TX1330/RX1270nm  More 60KM Simplex LC SMF +1~+5dBm ≦-20dBm Tc/Ti
JXP-B2310G-DL80D 10Gbps TX1490/RX1550nm  More 80KM Simplex LC SMF +1~+5dBm ≦-23dBm Tc/Ti
JXP-B3210G-DL80D 10Gbps TX1550/RX1490nm  More 80KM Simplex LC SMF +1~+5dBm ≦-23dBm Tc/Ti
