MPO/MTP Breakout Cable, MPO/MTP Fanout Cable Custom Length, Custom Color

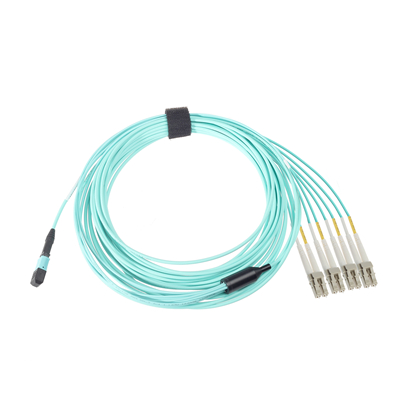

MPO to 4x LC-Dulplex OM3 50/125μm B 8 Fibers Multi Mode xxx Meter (Custom Length) MPO/MTP Breakout Cable Standard Aqua

JMP-B8FBM3LD-xxx-SA is a high quality multifiber cable assembly with the Pre-terminated push-on/pull-off designed components that provides consistent and repeatable interconnections up to 8 fibers for today's 40G and 100G networks. It is specifically designed and custom-built to fulfill applications such as Data Center Interconnect , Storage Area Network/Fiber Channel, Parallel Optics.

IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP interfaces
Up to 8 fibers MTP/MPO per connector
High Density, Secure and Reliable Connection
High performance in IL & RL
Cable length custom is available upon request
Cable color custom is available upon request
Pre-terminated design, Easy-to-inplement

Fiber Mode	OM3
Fiber Type	50/125μm

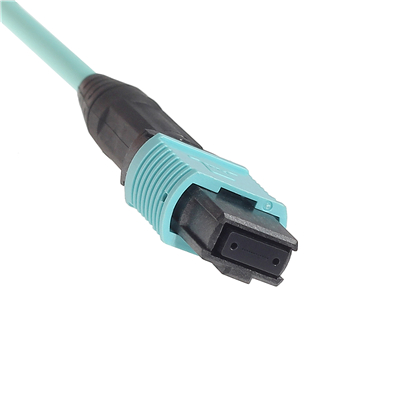

Connector A	MPO
Gender A	Female
Connector B	/
Gender B	/

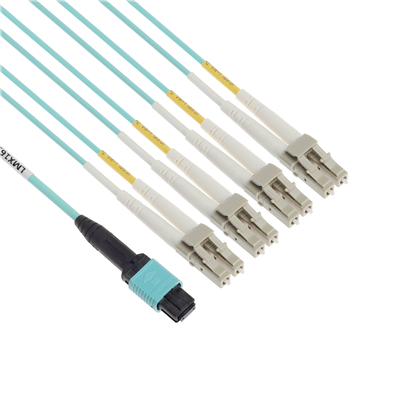

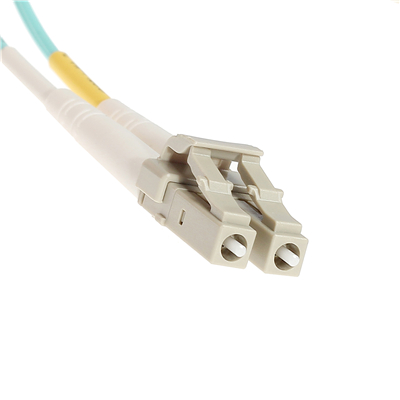

Connector B (Breakout)	4x LC-Dulplex
Gender B (Breakout)	Male
Fiber cores	8
Polarity	B
Grade	Standard
Cable Jacket	LSZH, PVC
Cable Diameter	3.0mm
Breakout	0.9/2.0mm
Breakout Length	0.5M
Color	Aqua

Optical Properties

Fiber Cable

Attenuation

Multi mode

≤2.3 at 850nm
≤0.6 at 1300nm

MPO/MTP Connector

Insertion Loss (dB)	Multi mode	Standard: ≤0.6 Elite: ≤0.35
Return Loss (dB)	Multi mode	UPC: ≥20

LC/SC/FC/ST Connector

Insertion Loss (dB)	Multi mode	UPC: ≤0.25
Return Loss (dB)	Multi mode	UPC: ≥30

Durability	≤0.2 dB at 200 cycles
Operating Temprature	-20°C ~ +70°C
Storage Temprature	-20°C ~ +85°C

P/N	Category	Fiber Mode	Connector A	Connector B	Connector B(Breakout)	Fiber cores	Grade	Length
JMP-B8FBM3LD-xxx-SA	MPO/MTP Breakout Cable	OM3 More	MPO	/	4x LC-Dulplex	8	Standard	xxx Meter (Custom Length)
JMT-B8FBM3LD-xxx-EA	MPO/MTP Breakout Cable	OM3 More	MTP	/	4x LC-Dulplex	8	Elite	xxx Meter (Custom Length)
JMT-B8FBM4LD-xxx-EM	MPO/MTP Breakout Cable	OM4 More	MTP	/	4x LC-Dulplex	8	Elite	xxx Meter (Custom Length)
JMT-B12FBM3LD-xxx-EA	MPO/MTP Breakout Cable	OM3 More	MTP	/	6x LC-Dulplex	12	Elite	xxx Meter (Custom Length)
JMT-B12FBM4LD-xxx-EM	MPO/MTP Breakout Cable	OM4 More	MTP	/	6x LC-Dulplex	12	Elite	xxx Meter (Custom Length)
JMT-B16FBM3LD-xxx-EA	MPO/MTP Breakout Cable	OM3 More	MTP	/	8x LC-Dulplex	16	Elite	xxx Meter (Custom Length)
JMT-B16FBM4LD-xxx-EM	MPO/MTP Breakout Cable	OM4 More	MTP	/	8x LC-Dulplex	16	Elite	xxx Meter (Custom Length)
JMP-B8FBM4LD-xxx-SM	MPO/MTP Breakout Cable	OM4 More	MPO	/	4x LC-Dulplex	8	Standard	xxx Meter (Custom Length)
JMP-B12FBM3LD-xxx-SA	MPO/MTP Breakout Cable	OM3 More	MPO	/	6x LC-Dulplex	12	Standard	xxx Meter (Custom Length)
JMP-B12FBM4LD-xxx-SM	MPO/MTP Breakout Cable	OM4 More	MPO	/	6x LC-Dulplex	12	Standard	xxx Meter (Custom Length)
JMP-B16FBM3LD-xxx-SA	MPO/MTP Breakout Cable	OM3 More	MPO	/	8x LC-Dulplex	16	Standard	xxx Meter (Custom Length)
JMP-B16FBM4LD-xxx-SM	MPO/MTP Breakout Cable	OM4 More	MPO	/	8x LC-Dulplex	16	Standard	xxx Meter (Custom Length)
