Home > MPO/MTP Connectivity > MPO/MTP Breakout Cable > Multi Mode > JMP-B12FBM3LD-xxx-SA
JMP-B12FBM3LD-xxx-SA JMP-B12FBM3LD-xxx-SA JMP-B12FBM3LD-xxx-SA
JMP-B12FBM3LD-xxx-SA
JMP-B12FBM3LD-xxx-SA
JMP-B12FBM3LD-xxx-SA

JMP-B12FBM3LD-xxx-SA

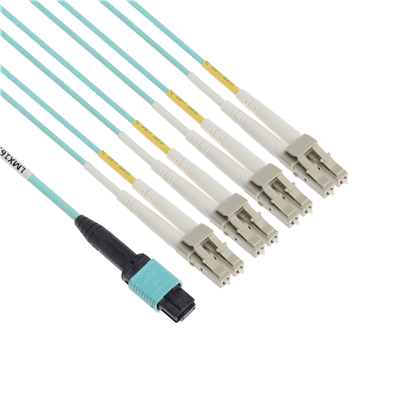

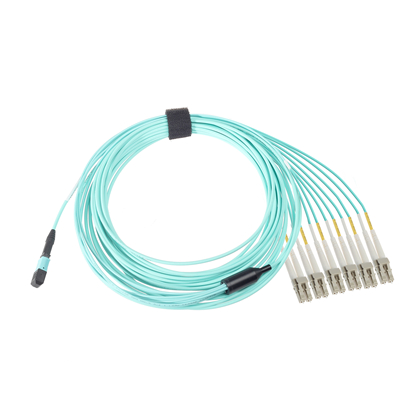

MPO to 6x LC-Dulplex OM3 50/125μm B 12 Fibers Multi Mode xxx Meter (Custom Length) MPO/MTP Breakout Cable Standard Aqua

JMP-B12FBM3LD-xxx-SA is a high quality multifiber cable assembly with the Pre-terminated push-on/pull-off designed components that provides consistent and repeatable interconnections up to 12 fibers for today's 40G and 100G networks. It is specifically designed and custom-built to fulfill applications such as Data Center Interconnect , Storage Area Network/Fiber Channel, Parallel Optics.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP interfaces
  • Up to 12 fibers MTP/MPO per connector
  • High Density, Secure and Reliable Connection
  • High performance in IL & RL
  • Cable length custom is available upon request
  • Cable color custom is available upon request
  • Pre-terminated design, Easy-to-inplement

Fiber Mode OM3
Fiber Type 50/125μm

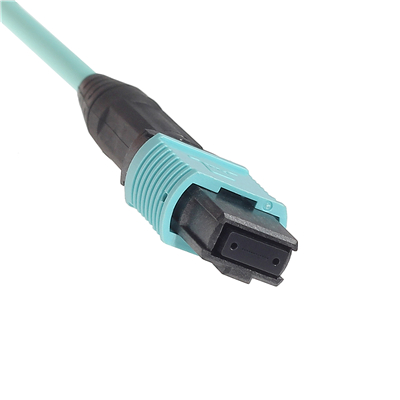

Connector A MPO
Gender A Female
Connector B /
Gender B /

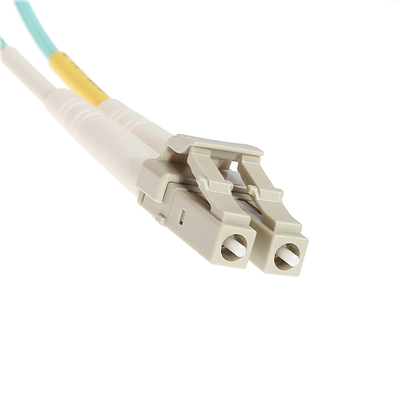

Connector B (Breakout) 6x LC-Dulplex
Gender B (Breakout) Male
Fiber cores 12
Polarity B
Grade Standard
Cable Jacket LSZH, PVC
Cable Diameter 3.0mm
Breakout 0.9/2.0mm
Breakout Length 0.5M
Color Aqua

Optical Properties

Fiber Cable
Attenuation Multi mode ≤2.3 at 850nm
≤0.6 at 1300nm
MPO/MTP Connector
Insertion Loss (dB) Multi mode Standard: ≤0.6
Elite: ≤0.35
Return Loss (dB) Multi mode UPC: ≥20
LC/SC/FC/ST Connector
Insertion Loss (dB) Multi mode UPC: ≤0.25
Return Loss (dB) Multi mode UPC: ≥30
Durability ≤0.2 dB at 200 cycles
Operating Temprature -20°C ~ +70°C
Storage Temprature -20°C ~ +85°C
P/N Category Fiber Mode Connector A Connector B Connector B(Breakout) Fiber cores Grade Length
JMP-B12FBM3LD-xxx-SA MPO/MTP Breakout Cable OM3  More MPO / 6x LC-Dulplex 12 Standard xxx Meter (Custom Length)
JMT-B8FBM3LD-xxx-EA MPO/MTP Breakout Cable OM3  More MTP / 4x LC-Dulplex 8 Elite xxx Meter (Custom Length)
JMT-B8FBM4LD-xxx-EM MPO/MTP Breakout Cable OM4  More MTP / 4x LC-Dulplex 8 Elite xxx Meter (Custom Length)
JMT-B12FBM3LD-xxx-EA MPO/MTP Breakout Cable OM3  More MTP / 6x LC-Dulplex 12 Elite xxx Meter (Custom Length)
JMT-B12FBM4LD-xxx-EM MPO/MTP Breakout Cable OM4  More MTP / 6x LC-Dulplex 12 Elite xxx Meter (Custom Length)
JMT-B16FBM3LD-xxx-EA MPO/MTP Breakout Cable OM3  More MTP / 8x LC-Dulplex 16 Elite xxx Meter (Custom Length)
JMT-B16FBM4LD-xxx-EM MPO/MTP Breakout Cable OM4  More MTP / 8x LC-Dulplex 16 Elite xxx Meter (Custom Length)
JMP-B8FBM3LD-xxx-SA MPO/MTP Breakout Cable OM3  More MPO / 4x LC-Dulplex 8 Standard xxx Meter (Custom Length)
JMP-B8FBM4LD-xxx-SM MPO/MTP Breakout Cable OM4  More MPO / 4x LC-Dulplex 8 Standard xxx Meter (Custom Length)
JMP-B12FBM4LD-xxx-SM MPO/MTP Breakout Cable OM4  More MPO / 6x LC-Dulplex 12 Standard xxx Meter (Custom Length)
JMP-B16FBM3LD-xxx-SA MPO/MTP Breakout Cable OM3  More MPO / 8x LC-Dulplex 16 Standard xxx Meter (Custom Length)
JMP-B16FBM4LD-xxx-SM MPO/MTP Breakout Cable OM4  More MPO / 8x LC-Dulplex 16 Standard xxx Meter (Custom Length)
