Home > MPO/MTP Connectivity > MPO/MTP Trunk Cable > Multi Mode > JMP-M424FB-xxx-SM
JMP-M424FB-xxx-SM JMP-M424FB-xxx-SM
JMP-M424FB-xxx-SM
JMP-M424FB-xxx-SM

JMP-M424FB-xxx-SM

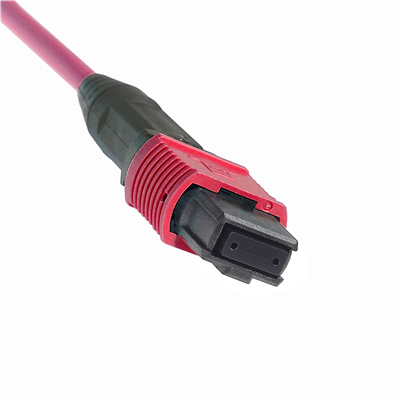

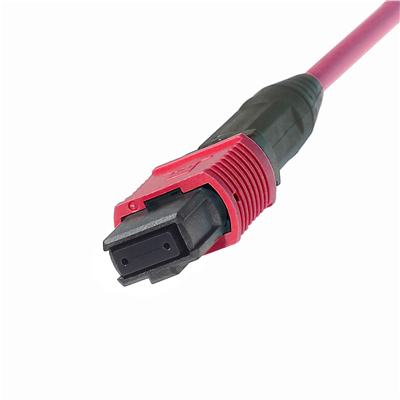

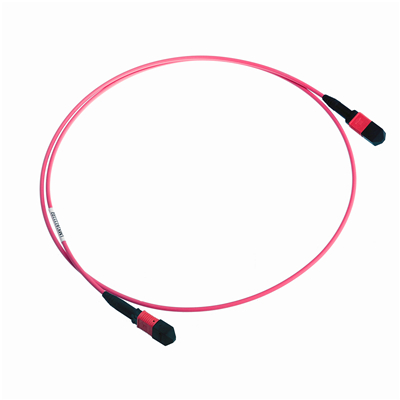

MPO to MPO OM4 50/125μm B 24 Fibers Multi Mode xxx Meter (Custom Length) MPO/MTP Trunk Cable Standard Magenta

JMP-M424FB-xxx-SM is a high quality multifiber cable assembly with the Pre-terminated push-on/pull-off designed components that provides consistent and repeatable interconnections up to 24 fibers for today's 40G and 100G networks. It is specifically designed and custom-built to fulfill applications such as Data Center Interconnect , Storage Area Network/Fiber Channel, Parallel Optics.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP interfaces
  • Up to 24 fibers MTP/MPO per connector
  • High Density, Secure and Reliable Connection
  • High performance in IL & RL
  • Cable length custom is available upon request
  • Cable color custom is available upon request
  • Pre-terminated design, Easy-to-inplement

Fiber Mode OM4
Fiber Type 50/125μm
Connector A MPO
Gender A Female
Connector B MPO
Gender B Female
Connector B (Breakout) /
Gender B (Breakout) /
Fiber cores 24
Polarity B
Grade Standard
Cable Jacket LSZH, PVC
Cable Diameter 3.0mm
Breakout /
Breakout Length /
Color Magenta

Optical Properties

Fiber Cable
Attenuation Multi mode ≤2.3 at 850nm
≤0.6 at 1300nm
MPO/MTP Connector
Insertion Loss (dB) Multi mode Standard: ≤0.6
Elite: ≤0.35
Return Loss (dB) Multi mode UPC: ≥20
LC/SC/FC/ST Connector
Insertion Loss (dB)
Return Loss (dB)
Durability ≤0.2 dB at 200 cycles
Operating Temprature -20°C ~ +70°C
Storage Temprature -20°C ~ +85°C
P/N Category Fiber Mode Connector A Connector B Connector B(Breakout) Fiber cores Grade Length
JMP-M424FB-xxx-SM MPO/MTP Trunk Cable OM4  More MPO MPO / 24 Standard xxx Meter (Custom Length)
JMT-M312FB-xxx-EA MPO/MTP Trunk Cable OM3  More MTP MTP / 12 Elite xxx Meter (Custom Length)
JMT-M412FB-xxx-EM MPO/MTP Trunk Cable OM4  More MTP MTP / 12 Elite xxx Meter (Custom Length)
JMT-M512FB-xxx-EG MPO/MTP Trunk Cable OM5  More MTP MTP / 12 Elite xxx Meter (Custom Length)
JMT-M424FB-xxx-EM MPO/MTP Trunk Cable OM4  More MTP MTP / 24 Elite xxx Meter (Custom Length)
JMT-S224FB-xxx-EY MPO/MTP Trunk Cable OS2  More MTP MTP / 24 Elite xxx Meter (Custom Length)
JMP-M312FB-xxx-SA MPO/MTP Trunk Cable OM3  More MPO MPO / 12 Standard xxx Meter (Custom Length)
JMP-M412FB-xxx-SM MPO/MTP Trunk Cable OM4  More MPO MPO / 12 Standard xxx Meter (Custom Length)
JMP-M512FB-xxx-SG MPO/MTP Trunk Cable OM5  More MPO MPO / 12 Standard xxx Meter (Custom Length)
JMP-S224FB-xxx-SY MPO/MTP Trunk Cable OS2  More MPO MPO / 24 Standard xxx Meter (Custom Length)
