MTP/MPO Trunk Cable, MTP/MPO Patch Cord Custom Length, Custom Color

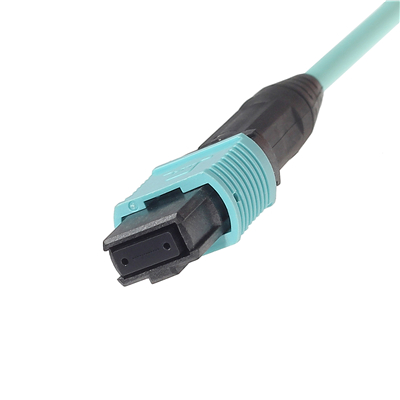

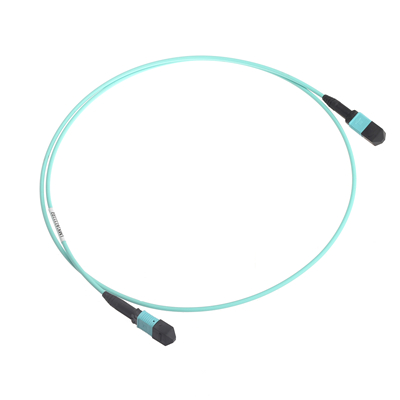

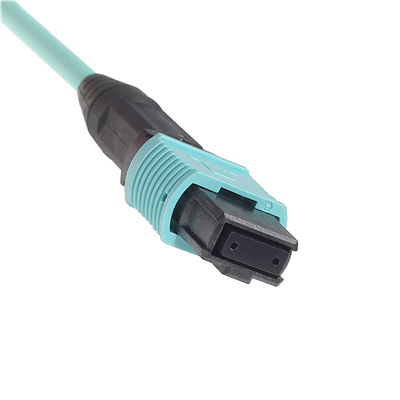

MPO to MPO OM3 50/125μm B 12 Fibers Multi Mode xxx Meter (Custom Length) MPO/MTP Trunk Cable Standard Aqua

JMP-M312FB-xxx-SA is a high quality multifiber cable assembly with the Pre-terminated push-on/pull-off designed components that provides consistent and repeatable interconnections up to 12 fibers for today's 40G and 100G networks. It is specifically designed and custom-built to fulfill applications such as Data Center Interconnect , Storage Area Network/Fiber Channel, Parallel Optics.

IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP interfaces
Up to 12 fibers MTP/MPO per connector
High Density, Secure and Reliable Connection
High performance in IL & RL
Cable length custom is available upon request
Cable color custom is available upon request
Pre-terminated design, Easy-to-inplement

Fiber Mode	OM3
Fiber Type	50/125μm
Connector A	MPO
Gender A	Female
Connector B	MPO
Gender B	Female
Connector B (Breakout)	/
Gender B (Breakout)	/
Fiber cores	12
Polarity	B
Grade	Standard
Cable Jacket	LSZH, PVC
Cable Diameter	3.0mm
Breakout	/
Breakout Length	/
Color	Aqua

Optical Properties

Fiber Cable

Attenuation

Multi mode

≤2.3 at 850nm
≤0.6 at 1300nm

MPO/MTP Connector

Insertion Loss (dB)	Multi mode	Standard: ≤0.6 Elite: ≤0.35
Return Loss (dB)	Multi mode	UPC: ≥20

LC/SC/FC/ST Connector

Insertion Loss (dB)

Return Loss (dB)

Durability	≤0.2 dB at 200 cycles
Operating Temprature	-20°C ~ +70°C
Storage Temprature	-20°C ~ +85°C

P/N	Category	Fiber Mode	Connector A	Connector B	Connector B(Breakout)	Fiber cores	Grade	Length
JMP-M312FB-xxx-SA	MPO/MTP Trunk Cable	OM3 More	MPO	MPO	/	12	Standard	xxx Meter (Custom Length)
JMT-M312FB-xxx-EA	MPO/MTP Trunk Cable	OM3 More	MTP	MTP	/	12	Elite	xxx Meter (Custom Length)
JMT-M412FB-xxx-EM	MPO/MTP Trunk Cable	OM4 More	MTP	MTP	/	12	Elite	xxx Meter (Custom Length)
JMT-M512FB-xxx-EG	MPO/MTP Trunk Cable	OM5 More	MTP	MTP	/	12	Elite	xxx Meter (Custom Length)
JMT-M424FB-xxx-EM	MPO/MTP Trunk Cable	OM4 More	MTP	MTP	/	24	Elite	xxx Meter (Custom Length)
JMT-S224FB-xxx-EY	MPO/MTP Trunk Cable	OS2 More	MTP	MTP	/	24	Elite	xxx Meter (Custom Length)
JMP-M412FB-xxx-SM	MPO/MTP Trunk Cable	OM4 More	MPO	MPO	/	12	Standard	xxx Meter (Custom Length)
JMP-M512FB-xxx-SG	MPO/MTP Trunk Cable	OM5 More	MPO	MPO	/	12	Standard	xxx Meter (Custom Length)
JMP-M424FB-xxx-SM	MPO/MTP Trunk Cable	OM4 More	MPO	MPO	/	24	Standard	xxx Meter (Custom Length)
JMP-S224FB-xxx-SY	MPO/MTP Trunk Cable	OS2 More	MPO	MPO	/	24	Standard	xxx Meter (Custom Length)
