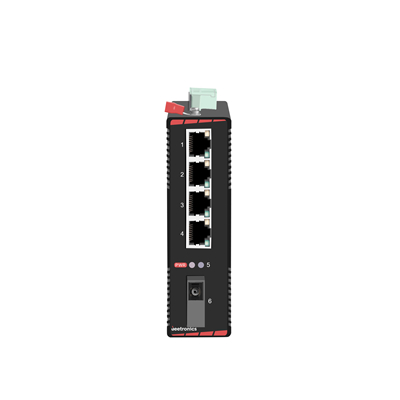

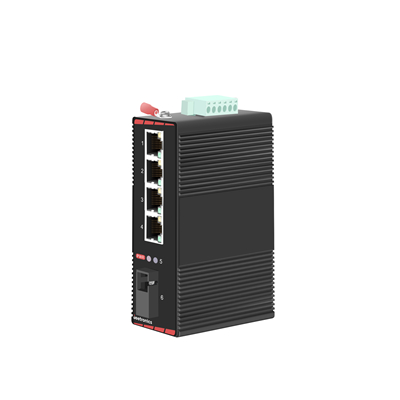

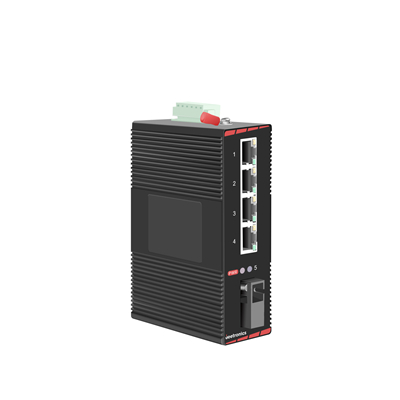

4x 10/100/1000Base-TX to 1x 1000Base-FX (Tx1550nm/Rx1310nm SMF 20km Single SC) Unmanaged Gigabit Ethernet Industrial Switch

JTGA104-B53S20 is an unmanaged Gigabit Ethernet industrial Switch is equipped with 4x 10/100/1000Base-TX and 1x 1000Base-FX interfaces that provides reliable and cost-effective network connectivity and fiber extension in harsh industrial environments, It is specifically designed to fulfill industrial applications such as industrial automation, security, power/utility, oil and gas, mining and outdoor environment.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Complies with IEEE 802.3 ,IEEE 802.3u ,IEEE 802.3ab ,IEEE 802.3z 1000BASE-X Gigabit FiberIEEE 802.3x
  • 4x 10/100/1000Base-TX
  • 1x 1000Base-FX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Redundant Power Design
  • Power Polarity Reverse Protection
  • Overload Current Protection
  • Extends fiber distance up to 20km
  • Operating Case Temperature : -40~75°C

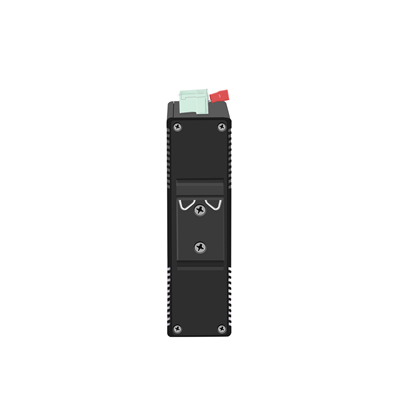

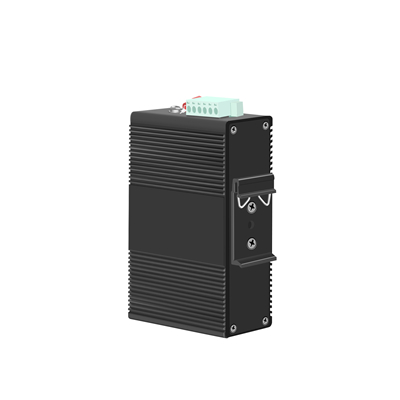

  • DIN-Rail or Wall Mountable
  • IP30 Corrosion resistant aluminum case

Data Rate 10/100/1000Mbps
Device Type Unmanaged

Interface Characteristics

Copper Interface 4x 10/100/1000Base-TX
Fiber Interface 1x 1000Base-FX
Wavelength Tx1550nm/Rx1310nm
Media SMF
Distance 20km
Connector Single SC
LED indicators PWR (power supply);
FL/A (optical link/action)
FDX (FX full duplex),
TL/A (twisted pairs link/action)
100 (100M transmission rate of twisted pairs),
FX (100M transmission rate of optical fiber)

Technology

Standards and Protocols IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X Gigabit Fiber
IEEE 802.3x Full duplex and flow control
Processing Type Store and Forward
Flow Control Half-duplex back-pressure and IEEE 802.3x full-duplex flow control

Power

Power Input DC 12~52V
PoE Standard /
PoE Power Budget /
Power Consumption <4W
Protection Overload current protection
Reverse polarity protection

Switch Properties

Switching Capacity 10G
Forwarding Rate 1.488Mbps
MAC address table 2K
Packet Buffer 2MB
Jumbo Frame 9K
Delay <3μs

Physical

Casing Mat. Aluminum, IP30
Dimensions 143 x 101 x 44mm
Installation DIN-Rail
Environmental Operating temperature : -10~55°C
Storage Temperature: -40~85°C
Relative Humidity: 5% to 95% non-condensing

Regulatory

ISO Manufactured in ISO-9001 facility
Safety & Emission CE , FCC, RoHS
EMI FCC Part 15B Class A
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
EMS EN 61000-6-2
EN 61000-4-2 (ESD Standards)
EN 61000-4-3 (Radiated RFI Standards)
EN 61000-4-4 (Burst Standards)
EN 61000-4-5 (Surge Standards)
EN 61000-4-6 (Induced RFI Standards)
EN 61000-4-8 (Magnetic Field Standards)
Stability IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
IEC 60068-2-32 Ed (Free fall w/package)

Realiability

MTBF >50,000Hrs
P/N Category Device Type Copper Interface Fiber Interface Wavelength Media Distance Connector Power Input
JTGA104-B53S20 Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX Tx1550nm/Rx1310nm SMF 20km Single SC DC 12~52V
JTGA102-P Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
JTGA104-P Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
JTGA204-P Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 2x 1000Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
JTGA208-P Industrial Ethernet Switch Unmanaged  More 8x 10/100/1000Base-TX 2x 1000Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
JTGA102-13S2 Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX 1310nm MMF 2km Dual SC DC 12~52V
JTGA102-13S20 Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX 1310nm SMF 20km Dual SC DC 12~52V
JTGA102-13S40 Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX 1310nm SMF 40km Dual SC DC 12~52V
JTGA102-15S60 Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX 1550nm SMF 60km Dual SC DC 12~52V
JTGA102-15S80 Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX 1550nm SMF 80km Dual SC DC 12~52V
JTGA102-B35S20 Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX Tx1310nm/Rx1550nm SMF 20km Single SC DC 12~52V
JTGA102-B53S20 Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX Tx1550nm/Rx1310nm SMF 20km Single SC DC 12~52V
JTGA102-B35S40 Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX Tx1310nm/Rx1550nm SMF 40km Single SC DC 12~52V
JTGA102-B53S40 Industrial Ethernet Switch Unmanaged  More 2x 10/100/1000Base-TX 1x 1000Base-FX Tx1550nm/Rx1310nm SMF 40km Single SC DC 12~52V
JTGA104-13S2 Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX 1310nm MMF 2km Dual SC DC 12~52V
JTGA104-13S20 Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX 1310nm SMF 20km Dual SC DC 12~52V
JTGA104-13S40 Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX 1310nm SMF 40km Dual SC DC 12~52V
JTGA104-15S60 Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX 1550nm SMF 60km Dual SC DC 12~52V
JTGA104-15S80 Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX 1550nm SMF 80km Dual SC DC 12~52V
JTGA104-B35S20 Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX Tx1310nm/Rx1550nm SMF 20km Single SC DC 12~52V
JTGA104-B35S40 Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX Tx1310nm/Rx1550nm SMF 40km Single SC DC 12~52V
JTGA104-B53S40 Industrial Ethernet Switch Unmanaged  More 4x 10/100/1000Base-TX 1x 1000Base-FX Tx1550nm/Rx1310nm SMF 40km Single SC DC 12~52V
JTGA005 Industrial Ethernet Switch Unmanaged  More 5x 10/100/1000Base-TX / / / / / DC 12~52V
JTGA008 Industrial Ethernet Switch Unmanaged  More 8x 10/100/1000Base-TX / / / / / DC 12~52V
JTGA108-P Industrial Ethernet Switch Unmanaged  More 8x 10/100/1000Base-TX 1x 1000Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
