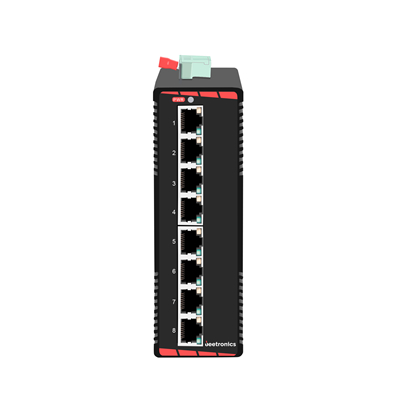

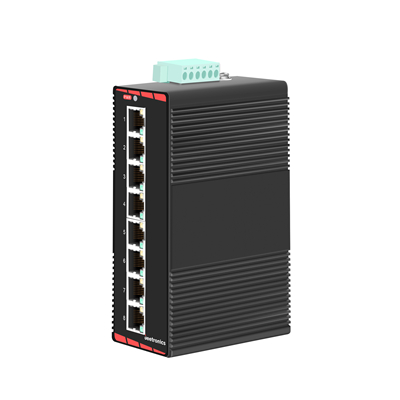

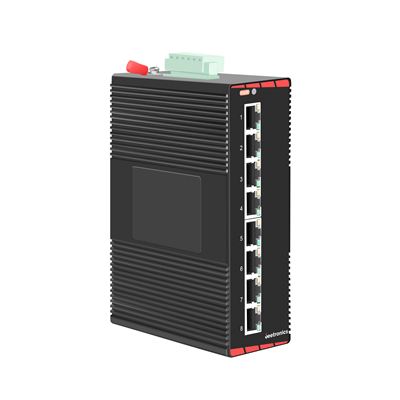

JTGA008

• Complies with IEEE 802.3 ,IEEE 802.3u ,IEEE 802.3ab ,IEEE 802.3x
• 8x 10/100/1000Base-TX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Redundant Power Design
• Power Polarity Reverse Protection
• Overload Current Protection
• Extends fiber distance up to /
• Operating Case Temperature : -40~75°C
• DIN-Rail or Wall Mountable
• IP30 Corrosion resistant aluminum case

Data Rate	10/100/1000Mbps
Device Type	Unmanaged

Interface Characteristics

Copper Interface	8x 10/100/1000Base-TX
Fiber Interface	/
Wavelength	/
Media	/
Distance	/
Connector	/
LED indicators	PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/action) 100 (100M transmission rate of twisted pairs), FX (100M transmission rate of optical fiber)

Technology

Standards and Protocols	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Full duplex and flow control
Processing Type	Store and Forward
Flow Control	Half-duplex back-pressure and IEEE 802.3x full-duplex flow control

Power

Power Input	DC 12~52V
PoE Standard	/
PoE Power Budget	/
Power Consumption	<4W
Protection	Overload current protection Reverse polarity protection

Switch Properties

Switching Capacity	16G
Forwarding Rate	1.488Mbps
MAC address table	2K
Packet Buffer	2MB
Jumbo Frame	10K
Delay	<3μs

Physical

Casing Mat.	Aluminum, IP30
Dimensions	143 x 101 x 44mm

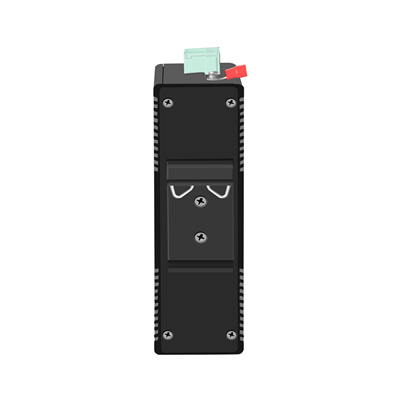

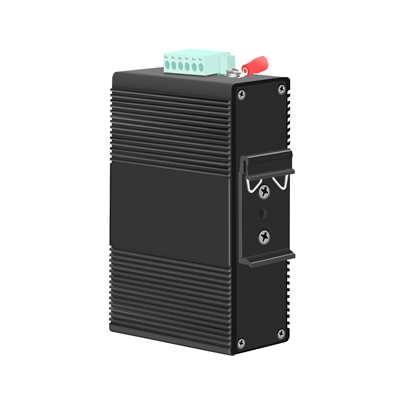

Installation	DIN-Rail
Environmental	Operating temperature : -10~55°C Storage Temperature: -40~85°C Relative Humidity: 5% to 95% non-condensing

Regulatory

ISO	Manufactured in ISO-9001 facility
Safety & Emission	CE , FCC, RoHS
EMI	FCC Part 15B Class A EN 61000-6-4 EN 61000-3-2 EN 61000-3-3
EMS	EN 61000-6-2 EN 61000-4-2 (ESD Standards) EN 61000-4-3 (Radiated RFI Standards) EN 61000-4-4 (Burst Standards) EN 61000-4-5 (Surge Standards) EN 61000-4-6 (Induced RFI Standards) EN 61000-4-8 (Magnetic Field Standards)
Stability	IEC 60068-2-6 Fc (Vibration) IEC 60068-2-27 Ea (Shock) IEC 60068-2-32 Ed (Free fall w/package)

Realiability

MTBF	>50,000Hrs

P/N	Category	Device Type	Copper Interface	Fiber Interface	Wavelength	Media	Distance	Connector	Power Input
JTGA008	Industrial Ethernet Switch	Unmanaged  More	8x 10/100/1000Base-TX	/	/	/	/	/	DC 12~52V
JTGA102-P	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
JTGA104-P	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
JTGA204-P	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	2x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
JTGA208-P	Industrial Ethernet Switch	Unmanaged  More	8x 10/100/1000Base-TX	2x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
JTGA102-13S2	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	MMF	2km	Dual SC	DC 12~52V
JTGA102-13S20	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	SMF	20km	Dual SC	DC 12~52V
JTGA102-13S40	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	SMF	40km	Dual SC	DC 12~52V
JTGA102-15S60	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	1550nm	SMF	60km	Dual SC	DC 12~52V
JTGA102-15S80	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	1550nm	SMF	80km	Dual SC	DC 12~52V
JTGA102-B35S20	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	Tx1310nm/Rx1550nm	SMF	20km	Single SC	DC 12~52V
JTGA102-B53S20	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	Tx1550nm/Rx1310nm	SMF	20km	Single SC	DC 12~52V
JTGA102-B35S40	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	Tx1310nm/Rx1550nm	SMF	40km	Single SC	DC 12~52V
JTGA102-B53S40	Industrial Ethernet Switch	Unmanaged  More	2x 10/100/1000Base-TX	1x 1000Base-FX	Tx1550nm/Rx1310nm	SMF	40km	Single SC	DC 12~52V
JTGA104-13S2	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	MMF	2km	Dual SC	DC 12~52V
JTGA104-13S20	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	SMF	20km	Dual SC	DC 12~52V
JTGA104-13S40	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	1310nm	SMF	40km	Dual SC	DC 12~52V
JTGA104-15S60	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	1550nm	SMF	60km	Dual SC	DC 12~52V
JTGA104-15S80	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	1550nm	SMF	80km	Dual SC	DC 12~52V
JTGA104-B35S20	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	Tx1310nm/Rx1550nm	SMF	20km	Single SC	DC 12~52V
JTGA104-B53S20	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	Tx1550nm/Rx1310nm	SMF	20km	Single SC	DC 12~52V
JTGA104-B35S40	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	Tx1310nm/Rx1550nm	SMF	40km	Single SC	DC 12~52V
JTGA104-B53S40	Industrial Ethernet Switch	Unmanaged  More	4x 10/100/1000Base-TX	1x 1000Base-FX	Tx1550nm/Rx1310nm	SMF	40km	Single SC	DC 12~52V
JTGA005	Industrial Ethernet Switch	Unmanaged  More	5x 10/100/1000Base-TX	/	/	/	/	/	DC 12~52V
JTGA108-P	Industrial Ethernet Switch	Unmanaged  More	8x 10/100/1000Base-TX	1x 1000Base-FX	Based on SFP Spec	Based on SFP Spec	Based on SFP Spec	SFP Port	DC 12~52V
