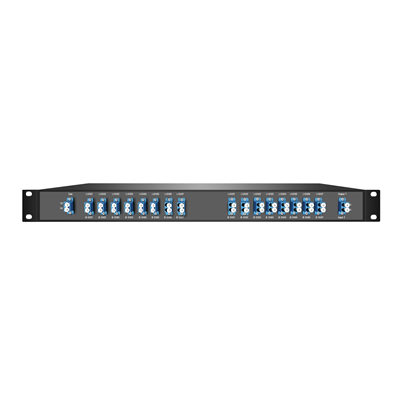

JDMX-XXXX-A08D

8 Channels DWDM OADM 1U Chassis / LGX Package Optional system Ch21~60 Wavelength Optional

JDMX-XXXX-A08D is a 1U Chassis / LGX Package Optional packaged Dual Fiber DWDM OADM system. It is specifically designed to esaily add or drop 8 Ch DWDM Ch21~60 traffic from a DWDM Stream. It is fully protocol transparent and to perfectly fulfill applications including 1G/10G/100G Ethernet, SDH/SONET, 1/2/4/8/16/32G Fibre Channel/FICON, CATV and FTTx.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Compliant to DWDM ITUT G.694.1 H Band 100GHz
  • Adding or droping of up to 8 CWDM wavelengths
  • Protocol transparent, support 1G, 10G, 100G etc
  • Low insertion loss
  • LC/UPC connectors
  • Passive, no electric power is required
  • High stability and reliability
  • 19" 1U Rackmount system
  • Custom design supported

Access Type Dual Fiber
Channels 8
EXP /
MON /
Packaging 1U Chassis / LGX Package Optional
Dimension 44x483x250mm mm
Center Wavelength Ch21~60 nm
Channel Spacing 100 GHz
Channel Passband ±0.11 mm
Center Wavelength Accuracy ±0.05 nm
Channel Uniformity < 1.0 dB
Adjacent channel isolation > 30 dB
Non adjacent channel isolation > 40 dB
Directivity > 55 dB
Return Loss > 50 dB
PDL < 0.15 dB
PMD < 0.1 ps
Wavelength thermal stability < 0.003 nm/°C
Insertion Loss thermal stability < 0.005 nm/°C
Power Handling < 300 mW
Operating temperature 0 ~ +70 °C
Storage temperature -40 ~ +85 °C
P/N Category Access Type EXP MON Channels Wavelength Packaging
JDMX-XXXX-A08D DWDM OADM Dual Fiber  More / / 8 Ch21~60(Optional) 1U Chassis / LGX Package Optional
JDMX-XXXX-A02D DWDM OADM Dual Fiber  More / / 2 Ch21~60(Optional) 1U Chassis / LGX Package Optional
JDMX-XXXX-A04D DWDM OADM Dual Fiber  More / / 4 Ch21~60(Optional) 1U Chassis / LGX Package Optional
JDMX-XXXX-A06D DWDM OADM Dual Fiber  More / / 6 Ch21~60(Optional) 1U Chassis / LGX Package Optional
