- Compliant to DWDM ITUT G.694.1 H Band 100GHz
- Adding or droping of up to 4 CWDM wavelengths
- Protocol transparent, support 1G, 10G, 100G etc
- Low insertion loss
- LC/UPC connectors
- Passive, no electric power is required
- High stability and reliability
- 19" 1U Rackmount system
- Custom design supported
Access Type | Dual Fiber |
Channels | 4 |
EXP | / |
MON | / |
Packaging | 1U Chassis / LGX Package Optional |
Dimension | 44x483x250mm | mm |
Center Wavelength | Ch21~60 | nm |
Channel Spacing | 100 | GHz |
Channel Passband | ±0.11 | mm |
Center Wavelength Accuracy | ±0.05 | nm |
Channel Uniformity | < 1.0 | dB |
Adjacent channel isolation | > 30 | dB |
Non adjacent channel isolation | > 40 | dB |
Directivity | > 55 | dB |
Return Loss | > 50 | dB |
PDL | < 0.15 | dB |
PMD | < 0.1 | ps |
Wavelength thermal stability | < 0.003 | nm/°C |
Insertion Loss thermal stability | < 0.005 | nm/°C |
Power Handling | < 300 | mW |
Operating temperature | 0 ~ +70 | °C |
Storage temperature | -40 ~ +85 | °C |
P/N | Category | Access Type | EXP | MON | Channels | Wavelength | Packaging |
---|---|---|---|---|---|---|---|

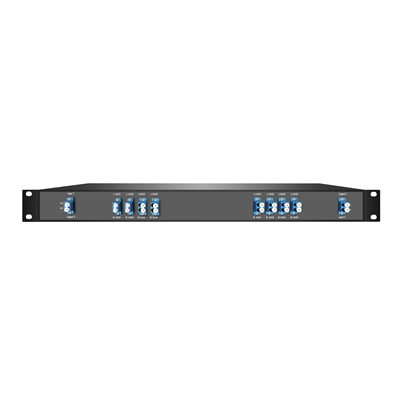

JDMX-XXXX-A04D | DWDM OADM | Dual Fiber More | / | / | 4 | Ch21~60(Optional) | 1U Chassis / LGX Package Optional |
JDMX-XXXX-A02D | DWDM OADM | Dual Fiber More | / | / | 2 | Ch21~60(Optional) | 1U Chassis / LGX Package Optional |
JDMX-XXXX-A06D | DWDM OADM | Dual Fiber More | / | / | 6 | Ch21~60(Optional) | 1U Chassis / LGX Package Optional |
JDMX-XXXX-A08D | DWDM OADM | Dual Fiber More | / | / | 8 | Ch21~60(Optional) | 1U Chassis / LGX Package Optional |
