- Compliant to DWDM ITUT G.694.1 H Band 100GHz
- Multiplexing of up to 16 DWDM wavelengths
- Protocol transparent, support 1G, 10G, 100G etc
- Low insertion loss
- LC/UPC connectors
- Athermal AWG
- High stability and reliability
- 19" 1U Rackmount system
- Custom design supported
| Access Type | Dual Fiber |
| Channels | 16 |
| EXP | Optional |
| MON | Optional |
| Packaging | 1U Chassis |
| Dimension | 44x483x250mm | mm |
| Insertion loss IL | < 4.2 | dB |
| Mux+Demux IL | < 5.4 | dB |
| Center Wavelength | Ch21~60 | nm |
| Channel Spacing | 100 | GHz |
| Channel Passband | ±0.11 | mm |
| Center Wavelength Accuracy | ±0.05 | nm |
| Channel Uniformity | < 1.0 | dB |
| Adjacent channel isolation | > 22 | dB |
| Non adjacent channel isolation | > 30 | dB |
| Directivity | > 45 | dB |
| Return Loss | > 50 | dB |
| PDL | < 0.5 | dB |
| PMD | < 0.5 | ps |
| Wavelength thermal stability | < 0.003 | nm/°C |
| Insertion Loss thermal stability | < 0.005 | nm/°C |
| Power Handling | < 300 | mW |
| Operating temperature | 0 ~ +70 | °C |
| Storage temperature | -40 ~ +85 | °C |
| P/N | Category | Access Type | EXP | MON | Channels | Wavelength | Packaging |
|---|---|---|---|---|---|---|---|

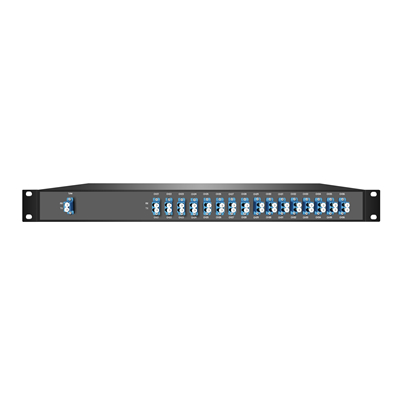

| JDMX-XXXX-16D | DWDM MUX/DEMUX | Dual Fiber More | Optional | Optional | 16 | Ch21~60(Optional) | 1U Chassis |
| JDMX-XXXX-08D | DWDM MUX/DEMUX | Dual Fiber More | Optional | Optional | 8 | Ch21~60(Optional) | 1U Chassis / LGX Package Optional |
| JDMX-XXXX-40D | DWDM MUX/DEMUX | Dual Fiber More | Optional | Optional | 40 | Ch21~60(Optional) | 1U Chassis |
