JDMX-XXXX-08D

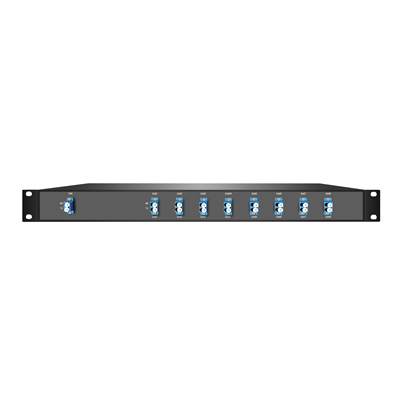

8 Channels DWDM MUX/DEMUX 1U Chassis / LGX Package Optional system Ch21~60 Wavelength Optional

JDMX-XXXX-08D is a 1U Chassis / LGX Package Optional packaged Dual Fiber DWDM MUX/DEMUX system. It is specifically designed to multiplex upto 8 Ch DWDM Ch21~60 traffic using high qulity filters. It is fully protocol transparent and to perfectly fulfill applications including 1G/10G/100G Ethernet, SDH/SONET, 1/2/4/8/16/32G Fibre Channel/FICON, CATV and FTTx.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Compliant to DWDM ITUT G.694.1 H Band 100GHz
  • Multiplexing of up to 8 DWDM wavelengths
  • Protocol transparent, support 1G, 10G, 100G etc
  • Low insertion loss
  • LC/UPC connectors
  • Athermal AWG
  • High stability and reliability
  • 19" 1U Rackmount system
  • Custom design supported

Access Type Dual Fiber
Channels 8
EXP Optional
MON Optional
Packaging 1U Chassis / LGX Package Optional
Dimension 44x483x250mm mm
Insertion loss IL <2.6 dB
Mux+Demux IL < 3.8 dB
Center Wavelength Ch21~60 nm
Channel Spacing 100 GHz
Channel Passband ±0.11 mm
Center Wavelength Accuracy ±0.05 nm
Channel Uniformity < 1.0 dB
Adjacent channel isolation > 22 dB
Non adjacent channel isolation > 30 dB
Directivity > 45 dB
Return Loss > 50 dB
PDL < 0.5 dB
PMD < 0.5 ps
Wavelength thermal stability < 0.003 nm/°C
Insertion Loss thermal stability < 0.005 nm/°C
Power Handling < 300 mW
Operating temperature 0 ~ +70 °C
Storage temperature -40 ~ +85 °C
P/N Category Access Type EXP MON Channels Wavelength Packaging
JDMX-XXXX-08D DWDM MUX/DEMUX Dual Fiber  More Optional Optional 8 Ch21~60(Optional) 1U Chassis / LGX Package Optional
JDMX-XXXX-16D DWDM MUX/DEMUX Dual Fiber  More Optional Optional 16 Ch21~60(Optional) 1U Chassis
JDMX-XXXX-40D DWDM MUX/DEMUX Dual Fiber  More Optional Optional 40 Ch21~60(Optional) 1U Chassis
