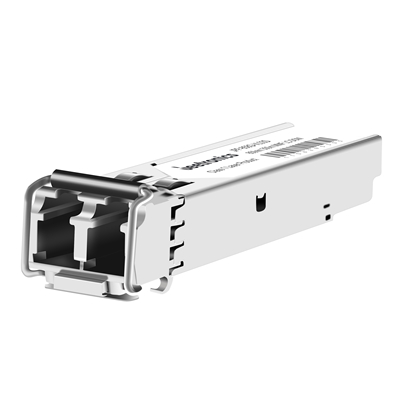

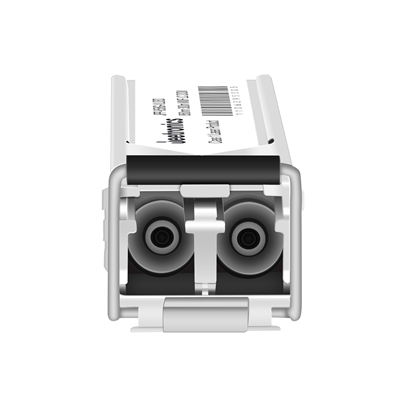

SFP 8Gbps 850nm MMF 300M Duplex LC Optical Transceiver

JPP-858G-VL03D is a MSA compliant 8Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 8Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 300M on MMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JPP-858G-VL03D
Form Factor SFP
Standard & protocal 8GBASE SR
Data Rate 8Gbps
WaveLength 850nm
Media MMF
Reach 300M
Interface Duplex LC
Tx Source VCSEL
Rx Source PIN
Tx Power -6~-0.5dBm
Rx Power ≦-10.0dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JPP-858G-VL03D 8Gbps 850nm  More 300M Duplex LC MMF -6~-0.5dBm ≦-10.0dBm Tc/Ti
JPP-138G-DL10D 8Gbps 1310nm  More 10KM Duplex LC SMF -6.5~-0.5dBm ≦-14.4dBm Tc/Ti
