- Hot-Pluggable SFP+ Footprint
- Supports upto 8.5Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 1.4KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP+ MSA Specification
- Low power consumption

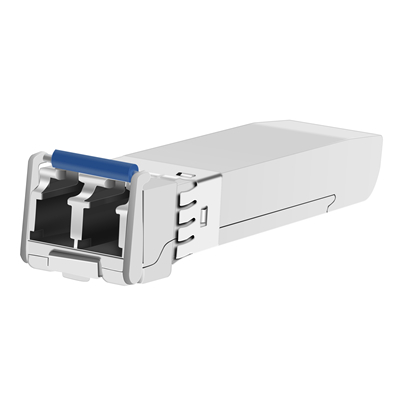

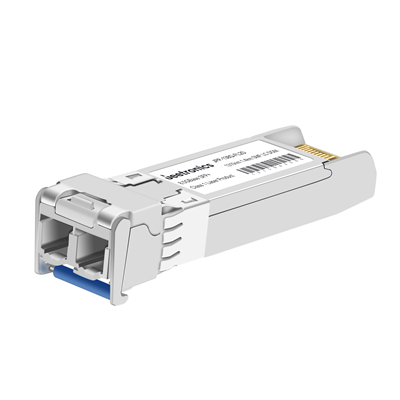

| P/N | JPP-138G-FL2D |
| Form Factor | SFP+ |
| Standard & protocal | 2/4/8x FC/8.5Gb Multi-Rate |
| Data Rate | 8.5Gbps |
| WaveLength | 1310nm |
| Media | SMF |
| Reach | 1.4KM |
| Interface | Duplex LC |
| Tx Source | FP |
| Rx Source | PIN |
| Tx Power | -8.2~+0.5dBm |
| Rx Power | ≦-14dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JPP-138G-FL2D | 8.5Gbps | 1310nm More | 1.4KM | Duplex LC | SMF | -8.2~+0.5dBm | ≦-14dBm | Tc/Ti |
| JPP-858G-VL01D | 8.5Gbps | 850nm More | 150M | Duplex LC | MMF | -8~-1dBm | ≦-12.5dBm | Tc/Ti |
| JPP-138G-DL20D | 8.5Gbps | 1310nm More | 20KM | Duplex LC | SMF | -4~0dBm | ≦-15dBm | Tc/Ti |
| JPP-138G-DL40D | 8.5Gbps | 1310nm More | 40KM | Duplex LC | SMF | 0~+4dBm | ≦-16dBm | Tc/Ti |
