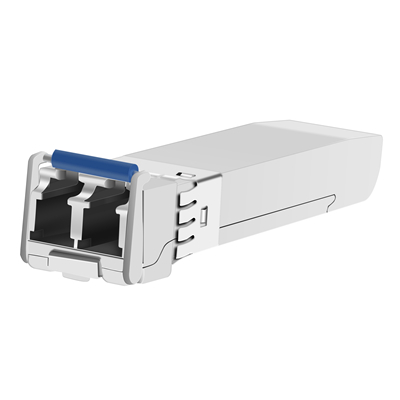

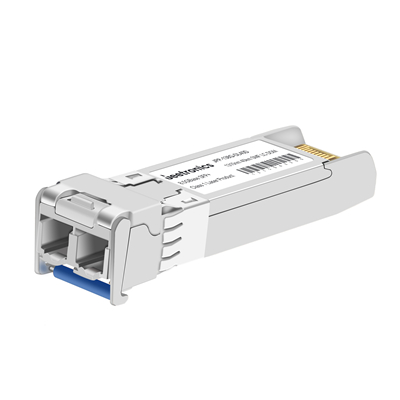

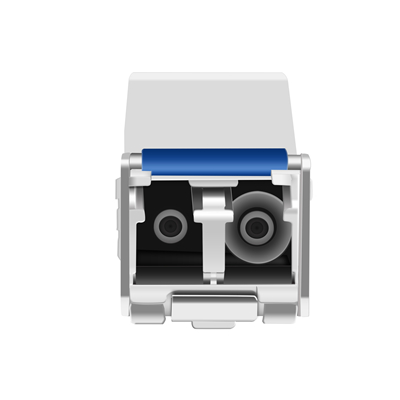

SFP+ 8.5Gbps 1310nm SMF 40KM Duplex LC Optical Transceiver

JPP-138G-DL40D is a MSA compliant 8.5Gbps SFP+ Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP+ Footprint
  • Supports upto 8.5Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 40KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP+ MSA Specification
  • Low power consumption

P/N JPP-138G-DL40D
Form Factor SFP+
Standard & protocal 2/4/8x FC/8.5Gb Multi-Rate
Data Rate 8.5Gbps
WaveLength 1310nm
Media SMF
Reach 40KM
Interface Duplex LC
Tx Source DFB
Rx Source PIN
Tx Power 0~+4dBm
Rx Power ≦-16dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JPP-138G-DL40D 8.5Gbps 1310nm  More 40KM Duplex LC SMF 0~+4dBm ≦-16dBm Tc/Ti
JPP-858G-VL01D 8.5Gbps 850nm  More 150M Duplex LC MMF -8~-1dBm ≦-12.5dBm Tc/Ti
JPP-138G-FL2D 8.5Gbps 1310nm  More 1.4KM Duplex LC SMF -8.2~+0.5dBm ≦-14dBm Tc/Ti
JPP-138G-DL20D 8.5Gbps 1310nm  More 20KM Duplex LC SMF -4~0dBm ≦-15dBm Tc/Ti
