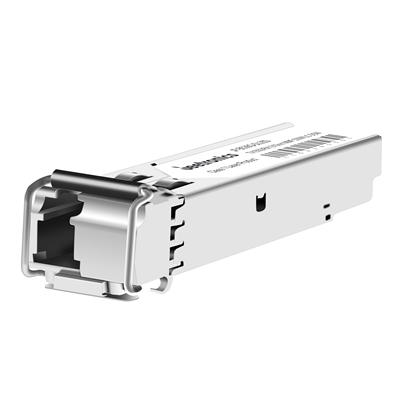

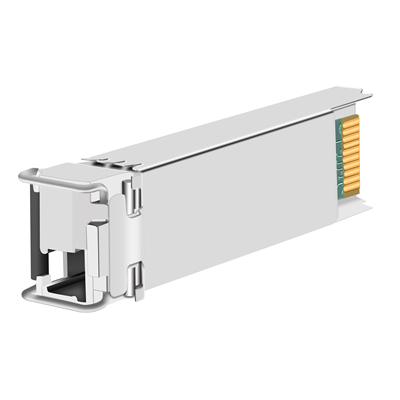

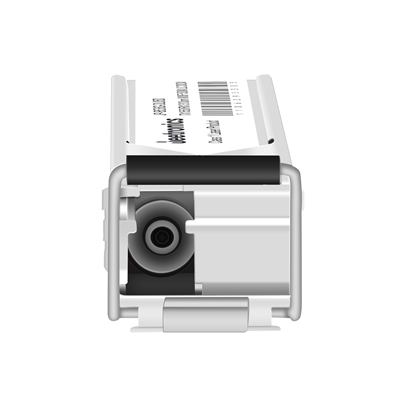

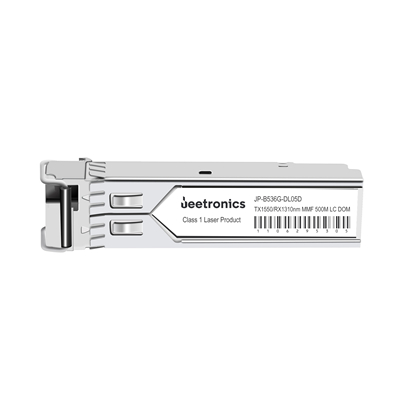

SFP 6.144Gbps TX1550/RX1310nm MMF 500M Simplex LC Optical Transceiver

JP-B536G-DL05D is a MSA compliant 6.144Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 6.144Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 500M on MMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-B536G-DL05D
Form Factor SFP
Standard & protocal 6GBASE BX
Data Rate 6.144Gbps
WaveLength TX1550/RX1310nm
Media MMF
Reach 500M
Interface Simplex LC
Tx Source DFB
Rx Source PIN
Tx Power -8~-1dBm
Rx Power ≦-14dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-B536G-DL05D 6.144Gbps TX1550/RX1310nm  More 500M Simplex LC MMF -8~-1dBm ≦-14dBm Tc/Ti
JP-B356G-FL05D 6.144Gbps TX1310/RX1550nm  More 500M Simplex LC MMF -6~+0.5dBm ≦-12.5dBm Tc/Ti
JP-B356G-DL20D 6.144Gbps TX1270/RX1330nm  More 20KM Simplex LC SMF -2~+3dBm ≦-14.5dBm Tc/Ti
JP-B536G-DL20D 6.144Gbps TX1330/RX1270nm  More 20KM Simplex LC SMF -2~+3dBm ≦-14.5dBm Tc/Ti
