- Hot-Pluggable SFP Footprint
- Supports upto 6.144Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 20KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

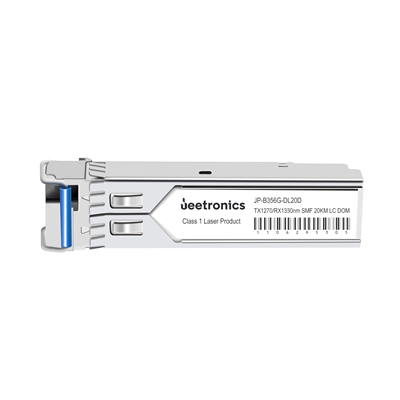

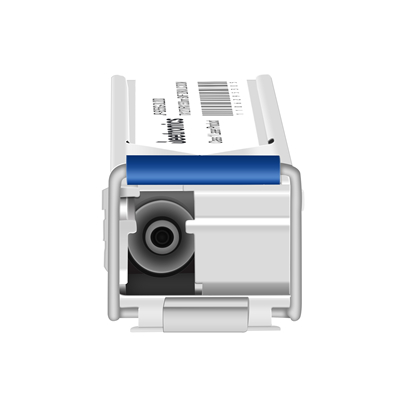

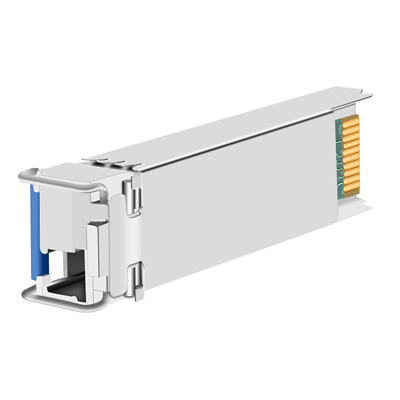

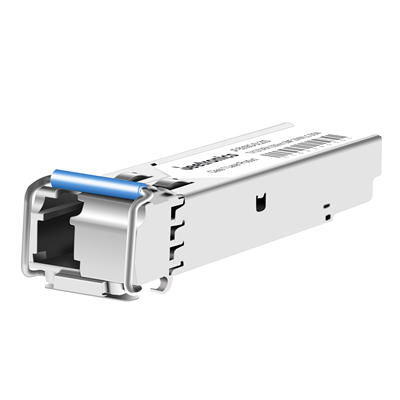

| P/N | JP-B356G-DL20D |
| Form Factor | SFP |
| Standard & protocal | 6GBASE BX |
| Data Rate | 6.144Gbps |
| WaveLength | TX1270/RX1330nm |
| Media | SMF |
| Reach | 20KM |
| Interface | Simplex LC |
| Tx Source | DFB |
| Rx Source | PIN |
| Tx Power | -2～+3dBm |
| Rx Power | ≦-14.5dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JP-B356G-DL20D | 6.144Gbps | TX1270/RX1330nm More | 20KM | Simplex LC | SMF | -2～+3dBm | ≦-14.5dBm | Tc/Ti |
| JP-B356G-FL05D | 6.144Gbps | TX1310/RX1550nm More | 500M | Simplex LC | MMF | -6～+0.5dBm | ≦-12.5dBm | Tc/Ti |
| JP-B536G-DL05D | 6.144Gbps | TX1550/RX1310nm More | 500M | Simplex LC | MMF | -8～-1dBm | ≦-14dBm | Tc/Ti |
| JP-B536G-DL20D | 6.144Gbps | TX1330/RX1270nm More | 20KM | Simplex LC | SMF | -2～+3dBm | ≦-14.5dBm | Tc/Ti |
