JP-1312-DL80D

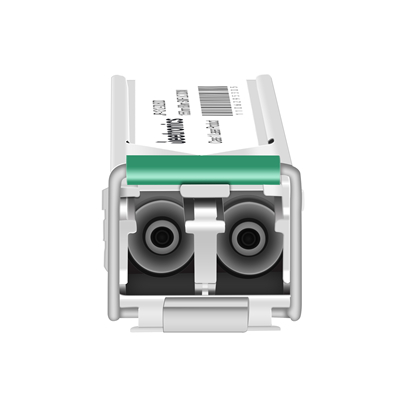

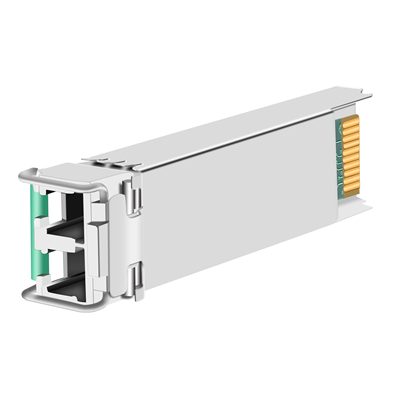

SFP 622Mbps 1550nm SMF 80KM Duplex LC Optical Transceiver

JP-1312-DL80D is a MSA compliant 622Mbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 622Mbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 80KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-1312-DL80D
Form Factor SFP
Standard & protocal 622MBASE ZX
Data Rate 622Mbps
WaveLength 1550nm
Media SMF
Reach 80KM
Interface Duplex LC
Tx Source DFB
Rx Source PIN
Tx Power -3~+2dBm
Rx Power ≦-28dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-1312-DL80D 622Mbps 1550nm  More 80KM Duplex LC SMF -3~+2dBm ≦-28dBm Tc/Ti
JP-1312-FL20D 622Mbps 1310nm  More 20KM Duplex LC SMF -15~-8dBm ≦-28dBm Tc/Ti
JP-1312-FL40D 622Mbps 1310nm  More 40KM Duplex LC SMF -3~+2dBm ≦-28dBm Tc/Ti
