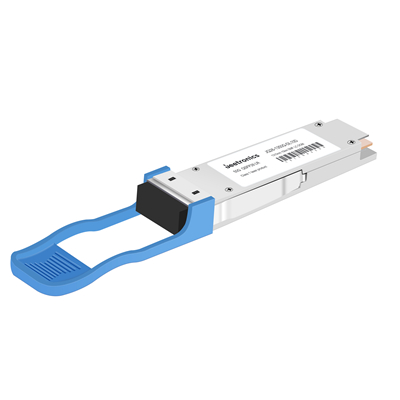

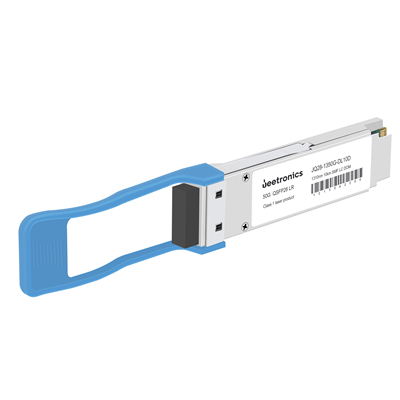

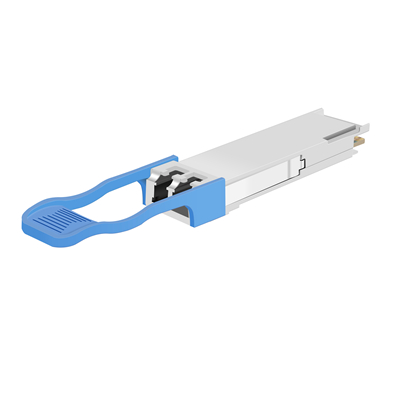

QSFP28 50Gbps 1310nm SMF 10KM Duplex LC Optical Transceiver

JQ28-1350G-DL10D is a MSA compliant 50Gbps QSFP28 Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable QSFP28 Footprint
  • Supports upto 50Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 10KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with QSFP28 MSA Specification
  • Low power consumption

P/N JQ28-1350G-DL10D
Form Factor QSFP28
Standard & protocal 50GBASE LR
Data Rate 50Gbps
WaveLength 1310nm
Media SMF
Reach 10KM

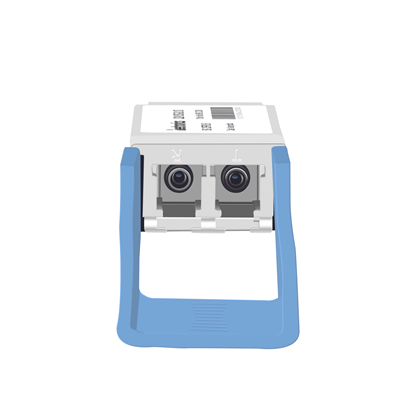

Interface Duplex LC
Tx Source DML
Rx Source PIN
Tx Power -4.5~+4.2dBm
Rx Power ≦-8.4dBm
Temp. Tc
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JQ28-1350G-DL10D 50Gbps 1310nm  More 10KM Duplex LC SMF -4.5~+4.2dBm ≦-8.4dBm Tc
JQ28-1350G-DL40D 50Gbps 1310nm  More 40KM Duplex LC SMF +0.4~+6.6dBm ≦-15.1dBm Tc
JQ28-B2350G-DL10D 50Gbps 1270nm&1330nm  More 10KM Duplex LC SMF -4.5~+4.2dBm ≦-8.4dBm Tc
