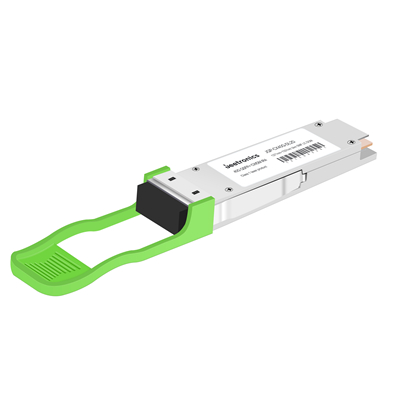

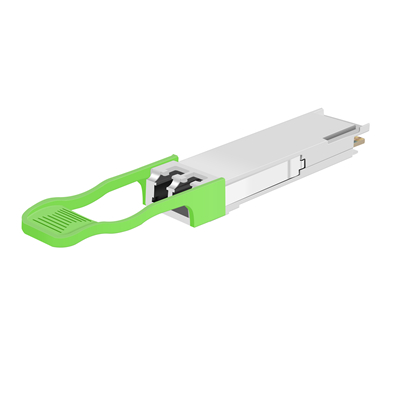

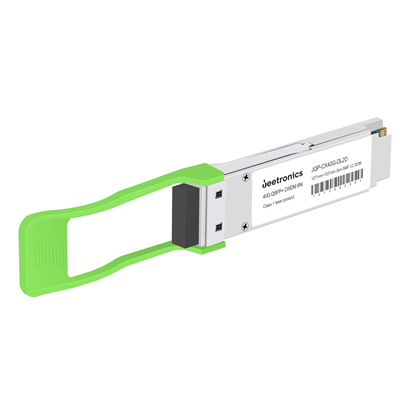

- Hot-Pluggable QSFP+ Footprint
- Supports upto 40Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 2KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with QSFP+ MSA Specification
- Low power consumption
| P/N | JQP-CX40G-DL2D |
| Form Factor | QSFP+ |
| Standard & protocal | 40GBASE CWDM IR4 |
| Data Rate | 40Gbps |
| WaveLength | CWDM 1271nm~1331nm |
| Media | SMF |
| Reach | 2KM |

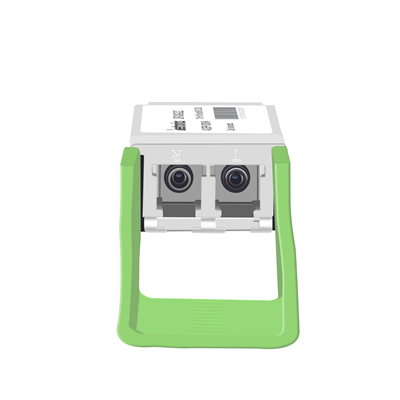

| Interface | Duplex LC |
| Tx Source | DFB |
| Rx Source | PIN |
| Tx Power | -7.5～+2.5dBm |
| Rx Power | ≦-10dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JQP-CX40G-DL2D | 40Gbps | CWDM 1271nm~1331nm More | 2KM | Duplex LC | SMF | -7.5～+2.5dBm | ≦-10dBm | Tc/Ti |
| JQP-8540G-VM01D | 40Gbps | 850nm More | 100M | MPO | MMF | -7.6～+2.4dBm | ≦-11.1dBm | Tc |
| JQP-8540G-VM03D | 40Gbps | 850nm More | 300M | MPO | MMF | -7.5～+2.4dBm | ≦-11.1dBm | Tc |
| JQP-1340G-DM2D | 40Gbps | PSM 1310nm More | 2KM | MPO | SMF | -5.5～+1.5dBm | ≦-12.5dBm | Tc/Ti |
| JQP-CX40G-DL2N01D | 40Gbps | CWDM 1271nm~1331nm More | 2KM(SM)/100M(MM) | Duplex LC | SMF/MMF | -7.5～+3.5dBm | ≦-10dBm | Tc/Ti |
| JQP-CX40G-DL10D | 40Gbps | CWDM 1271nm~1331nm More | 10KM | Duplex LC | SMF | -7.0～+2.3dBm | ≦-11.5dBm | Tc/Ti |
| JQP-1340G-DM10D | 40Gbps | PSM 1310nm More | 10KM | MPO | SMF | -5.5～+1.5dBm | ≦-12.6dBm | Tc/Ti |
| JQP-CX40G-DL40D | 40Gbps | CWDM 1271nm~1331nm More | 40KM | Duplex LC | SMF | -2.7～+4.5dBm | ≦-19dBm | Tc/Ti |
