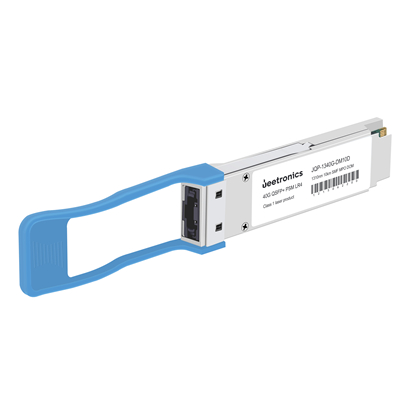

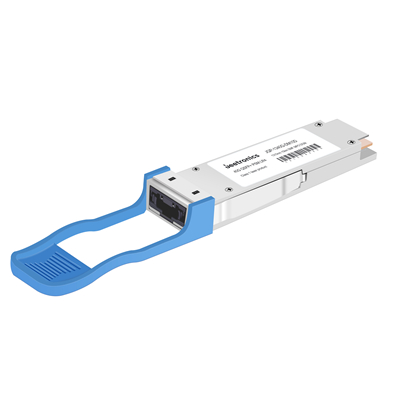

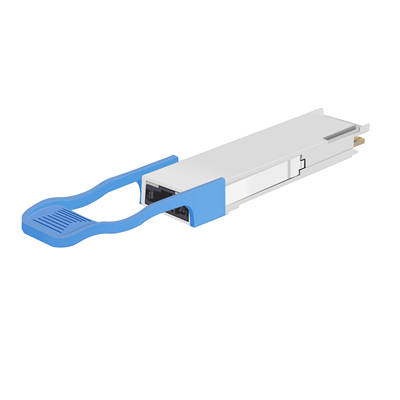

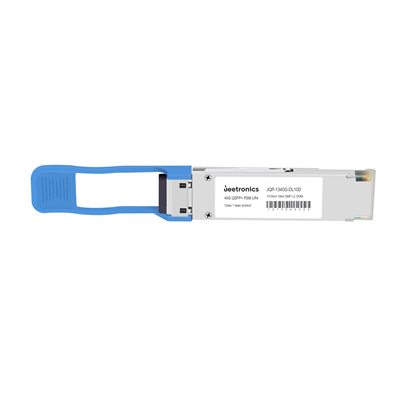

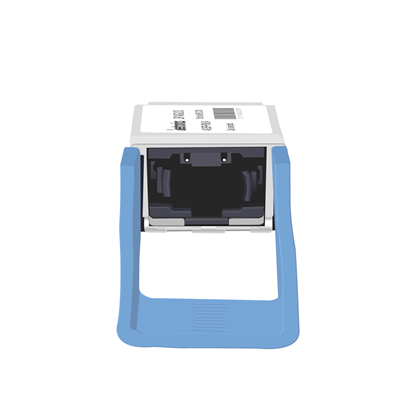

QSFP+ 40Gbps PSM 1310nm SMF 10KM MPO Optical Transceiver

JQP-1340G-DM10D is a MSA compliant 40Gbps QSFP+ Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable QSFP+ Footprint
  • Supports upto 40Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 10KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with QSFP+ MSA Specification
  • Low power consumption

P/N JQP-1340G-DM10D
Form Factor QSFP+
Standard & protocal 40GBASE PSM LR4
Data Rate 40Gbps
WaveLength PSM 1310nm
Media SMF
Reach 10KM
Interface MPO
Tx Source DFB
Rx Source PIN
Tx Power -5.5~+1.5dBm
Rx Power ≦-12.6dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JQP-1340G-DM10D 40Gbps PSM 1310nm  More 10KM MPO SMF -5.5~+1.5dBm ≦-12.6dBm Tc/Ti
JQP-8540G-VM01D 40Gbps 850nm  More 100M MPO MMF -7.6~+2.4dBm ≦-11.1dBm Tc
JQP-8540G-VM03D 40Gbps 850nm  More 300M MPO MMF -7.5~+2.4dBm ≦-11.1dBm Tc
JQP-CX40G-DL2D 40Gbps CWDM 1271nm~1331nm  More 2KM Duplex LC SMF -7.5~+2.5dBm ≦-10dBm Tc/Ti
JQP-1340G-DM2D 40Gbps PSM 1310nm  More 2KM MPO SMF -5.5~+1.5dBm ≦-12.5dBm Tc/Ti
JQP-CX40G-DL2N01D 40Gbps CWDM 1271nm~1331nm  More 2KM(SM)/100M(MM) Duplex LC SMF/MMF -7.5~+3.5dBm ≦-10dBm Tc/Ti
JQP-CX40G-DL10D 40Gbps CWDM 1271nm~1331nm  More 10KM Duplex LC SMF -7.0~+2.3dBm ≦-11.5dBm Tc/Ti
JQP-CX40G-DL40D 40Gbps CWDM 1271nm~1331nm  More 40KM Duplex LC SMF -2.7~+4.5dBm ≦-19dBm Tc/Ti
