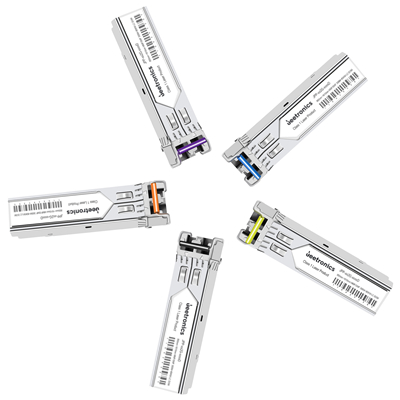

SFP 4Gbps 850nm~1610nm MMF/SMF 300M~80KM Duplex LC Optical Transceiver

JPP-xx2G-xxxxD is a MSA compliant 4Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 4Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 300M~80KM on MMF/SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JPP-xx2G-xxxxD
Form Factor SFP
Standard & protocal 2GBASE SX/LX/EX/ZX
Data Rate 4Gbps
WaveLength 850nm~1610nm
Media MMF/SMF
Reach 300M~80KM

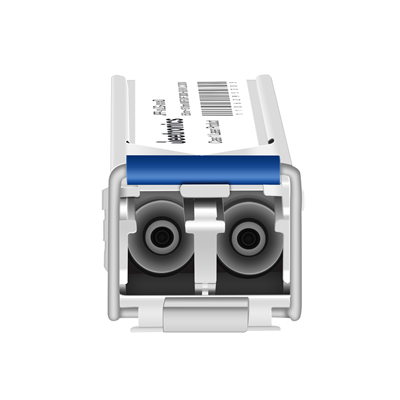

Interface Duplex LC
Tx Source VCSEL/DML
Rx Source PIN/APD
Tx Power /
Rx Power /
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JPP-xx2G-xxxxD 4Gbps 850nm~1610nm  More 300M~80KM Duplex LC MMF/SMF / / Tc/Ti
